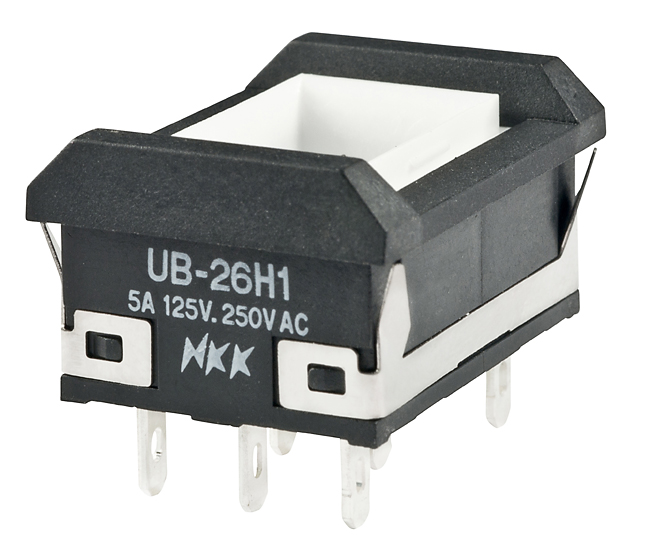

NKK Switches UB26NBKW015F Low Profile Illuminated Pushbutton
A low-profile illuminated pushbutton switch suitable for PCB and solder mounting, featuring vibrant LED options including red, green, blue, white, and amber. It offers quick-make/quick-break contact mechanism, high electrical life, and various illumination configurations with lenses and diffusers. Designed for compact spaces, it has a rugged housing with UL and CSA certification options, excellent dimensional tolerances, and environmental resistance for industrial and electronic projects. The switch's reliable operation, easy installation, and wide customization options make it ideal for control panels, automation, and machinery interfaces.
NKK Switches UB26NBKW015F Low Profile Illuminated Pushbutton Specifications:
- Poles & Circuits: Single Pole SPDT, Double Pole
- Voltage Rating: 5A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms (silver), 100 milliohms (gold)
- Insulation Resistance: 200 megaohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts, 1,500V AC minimum contacts & case
- Mechanical Life: 1,000,000 operations minimum for momentary, 200,000 for resistive load
- Electrical Life: 200,000 operations minimum
- Operating Temperature Range: -25°C to +50°C for illuminated, -20°C to +70°C non-illuminated
- Contact Material: Silver alloy or copper with gold plating
- Housing Material: UL94V-0 polyamide, base in polycarbonate, bezel in UL94V-0
- Switch Terminals: Solder lug, PCB terminals, epoxy sealed to lock out contaminants
- Size & Dimensions: 15.24x15.24 mm for square, 20 mm width for rectangular models
- Environmental Resistance: 95% humidity for 96 hours, vibration 3Hz-55Hz, shock 50G
- Standards & Certifications: UL, CSA recognized, UL94V-0 housing, optional electrical ratings
Buy the NKK Series UB Low Profile Pushbuttons: UB26NBKW015F
Purchase the NKK Series UB26NBKW015F low-profile illuminated pushbutton switch online today. This compact, durable switch features vibrant LED illumination options, high electrical and mechanical life, and certified safety standards. Ideal for industrial control panels, automation, and electronic projects, it offers easy PCB or solder mounting, environmental resistance, and customization options, ensuring dependable performance for demanding applications. Improve your machinery and control systems with this reliable, space-saving switch designed for quick installation and long-term operation.
Order your NKK Series UB26NBKW015F today and enhance your control panel with this reliable, versatile, and compact illuminated pushbutton switch.
Frequently Asked Questions
Where can I buy NKK Switches UB26NBKW015F?
You can click on the BUY or RFQ button to purchase UB26NBKW015F from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB26NBKW015F?
You can download the UB26NBKW015F datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB26NBKW015F?
NKK Switches
