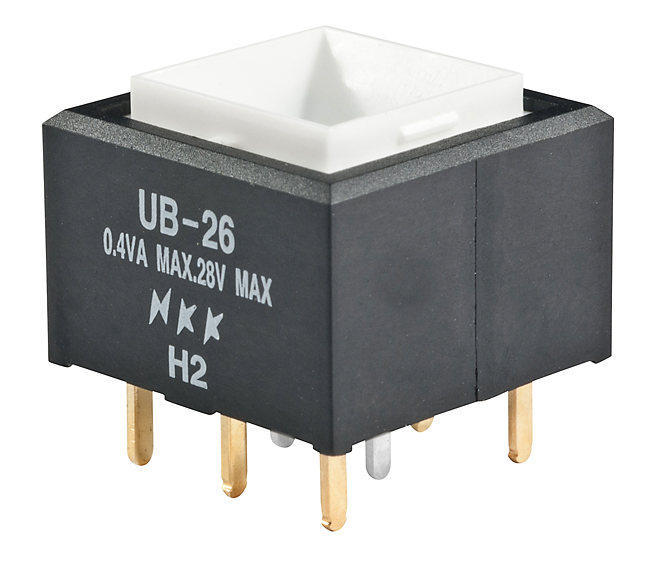

NKK Switches UB26SKG036B Low Profile Pushbutton Switch
A low-profile illuminated pushbutton switch suitable for printed circuit board mounting and soldering applications. Designed for easy operation with clear illumination, providing reliable functionality in various electronic devices.
NKK Switches UB26SKG036B Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: SPDT, Double Pole
- Mounting Types: PCB Mounting, Snap-in
- LED Colors & Ratings: Red, Amber, Green, White, Blue; Bright & Super Bright LEDs
- LED Forward Peak Current: 30 mA for Red, Amber, Blue; 25-30 mA for others
- LED Forward Voltage: 1.85V for Red, 2.0V for Amber, 3.2V for Green, White, Blue
- Reverse Peak Voltage: 5V
- Ambient Temperature Range: -20°C through +50°C for Non-illuminated, -25°C through +50°C for Illuminated
- Electrical Ratings: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megaohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min; 1,500V AC between contacts & case for 1 min
- Mechanical Life: 1,000,000 operations
- Material: Glass fiber reinforced polyamide (UL94V-0), Stainless steel, Phosphor bronze
- Operating Temperature Range: -20°C to +50°C (non-illuminated), -25°C to +50°C (illuminated)
- Soldering Temp & Time: Profile A, manual & wave soldering compliant
- Certifications: UL Recognized, CSA Certified
Buy the Buy NKK Series UB Low Profile Pushbuttons Part Number UB26SKG036B Online
Enhance your electronic assembly with this compact, reliable, illuminated pushbutton switch perfect for PCB mounting. Featuring bright LEDs in multiple colors, it offers easy actuation, high durability, and proven certifications. Designed for quick installation with snap-in mounting options, it’s ideal for space-constrained applications in industrial, commercial, or consumer electronics. Ensure seamless operation and long-term performance with a switch built to meet rigorous standards and deliver consistent lighting and control in your projects.
Order your NKK Series UB Low Profile Pushbutton with LED illumination today and elevate your electronic projects with dependable quality and easy installation.
Frequently Asked Questions
Where can I buy NKK Switches UB26SKG036B?
You can click on the BUY or RFQ button to purchase UB26SKG036B from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB26SKG036B?
You can download the UB26SKG036B datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB26SKG036B?
NKK Switches
