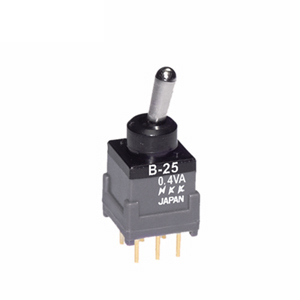

NKK Switches B25JP Miniature Toggle Switch
This compact subminiature toggle switch is designed for space-efficient electronic and appliance applications. It offers reliable on/off operation with a sealed body construction that prevents contact contamination. The switch features antistatic superstructure, high durability with minimum 50,000 cycles, and is suitable for low-voltage, low-current logic-level circuits. Its sealed design facilitates easy soldering and cleaning, making it ideal for industrial, automation, and control systems where space and reliability are critical.
NKK Switches B25JP Miniature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC maximum
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum
- Nominal Operating Force: Toggle types from 0.59N to 2.72N depending on model
- Materials & Finishes: Nickel plated brass, carbon blended polyamide, nitrile butadiene rubber
- Operating Temperature Range: -30°C through +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz, 1.5mm amplitude
- Shock: 50G acceleration
- Soldering: Wave and manual soldering recommended
- Standards & Certifications: UL9AV-0, UL recognized; not UL or CSA certified for toggles
- Environmental Durability: Vibration and shock resistant, sealed construction for contamination prevention
- Mounting: Panel seal threading meets IP65 standards, surface mount options
Buy the NKK Series B – Reliable Toggle Switch for Industrial Applications
Secure your space-saving, sealed toggle switch from NKK today and enhance your electronic or industrial projects with reliable on/off control. Designed for low-voltage circuits, this switch provides excellent contact stability and static discharge protection. Its compact size saves valuable space on PC boards, and its durable construction ensures long-term operation up to 100,000 cycles. Perfect for automation, control panels, and appliances, order online now for fast delivery and trusted quality, ensuring your projects meet high reliability standards.
Order your NKK Series B toggle switch today and give your projects the dependable quality they deserve with space-efficient, sealed design.
Frequently Asked Questions
Where can I buy NKK Switches B25JP?
You can click on the BUY or RFQ button to purchase B25JP from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B25JP?
You can download the B25JP datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B25JP?
NKK Switches
