NKK Switches B23JWJA Subminiature Toggle Switch
A compact, process-sealed subminiature toggle switch ideal for sensitive electronic applications requiring space-saving, reliable switching. Its antistatic superstructure prevents static discharge, ensuring consistent performance. Designed for low-voltage, logic-level circuits, it features sealed body construction, high mechanical and electrical durability, and optional panel seal mounting with IP65 compliance. The switch incorporates award-winning STC contact mechanisms for smooth actuation and excellent contact stability. Ideal for automation, instrumentation, and control panels requiring precise, dependable operation in confined spaces.
NKK Switches B23JWJA Subminiature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 min
- Mechanical Life: 100,000 operations min
- Electrical Life: 50,000 operations min
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz, amplitude 1.5mm, 2 hours per axis
- Shock: 50G acceleration
- Material (toggle): Nickel plated brass
- Bushing: Carbon blended polyamide, nickel plated zinc alloy
- Support Bracket: Nitrile butadiene rubber
- Case Housing: Glass fiber reinforced polyamide
- Terminals: Tin plated phosphor bronze
- Soldering: Wave soldering, manual, automated cleaning recommended
- Certifications: UL9AV-0 (not UL or CSA certified for this series)

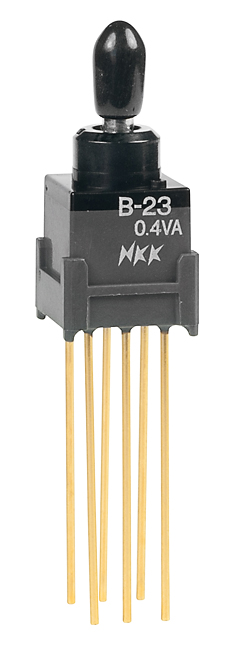

Buy the Buy NKK Switches Process Sealed Subminiature Toggle Switch Part Number B23JWJA Online
Discover high-quality, process-sealed subminiature toggle switches designed for compact electronic devices. Perfect for low-voltage applications, they feature static discharge protection, IP65 mounting compliance, and exceptional contact stability. Easy to solder and clean, these switches are ideal for automation, instrumentation, and control panels where space is limited. Purchase online today to benefit from reliable operation, durable construction, and seamless integration into your electronics projects, ensuring dependable performance in demanding environments.
Order your NKK SeriesB B23JWJA sealed toggle switch today and ensure reliable, space-saving control for your electronic projects with outstanding durability.
Frequently Asked Questions
Where can I buy NKK Switches B23JWJA?
You can click on the BUY or RFQ button to purchase B23JWJA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B23JWJA?
You can download the B23JWJA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B23JWJA?
NKK Switches
