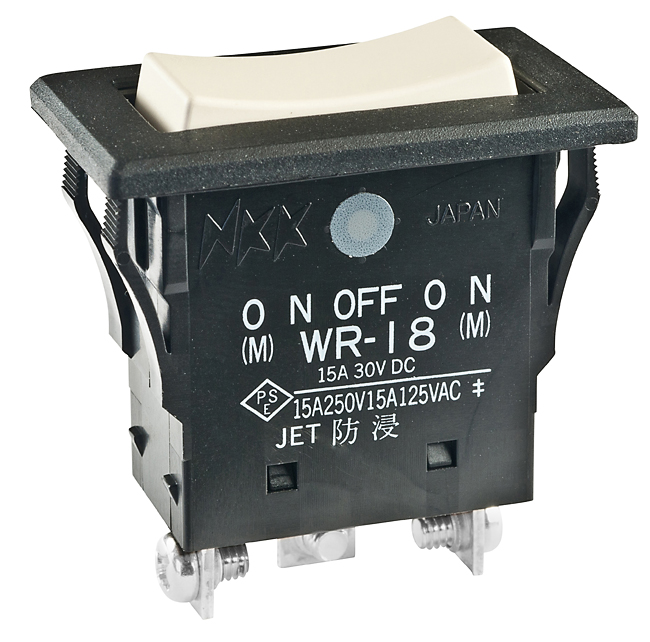

NKK Switches WR18BT Rocker Switch
Standard size rocker switch with environmental sealing for durability in harsh conditions. Suitable for various industrial and electronic applications where protection against environmental factors is required.
NKK Switches WR18BT Rocker Switch Specifications:
- Electrical Capacity: 15A @ 125/250V AC or 15A @ 30V DC
- Dielectric Strength: 1,250V AC minimum between contacts for 1 minute; 3,750V AC minimum between contacts & case for 1 minute
- Electrical Life: 30,000 operations; 15,000 for circuits 11 and 12; 10,000 for circuits 13, 15, 18, 19
- Mechanical Life: 30,000 operations
- Operating Temp Range: -20°C to +105°C
- Vibration Resistance: 10-55Hz with peak-to-peak amplitude of 1.5mm
- Shock Resistance: 50G acceleration in 6 directions
- Ingress Protection: IP67 for wire lead models; IP60 for solder lug, screw, quick connect models
- Materials: Phenylene oxide, Polyamide (UL94V-0), Melamine (UL94V-0), Glass fiber reinforced polyamide (UL94V-0), Nitrile butadiene rubber, Copper with silver plating, Silver alloy plus copper with silver plating, Copper with fin plating for solder lug & wire lead, Brass with silver or tin plating for screw lug and quick connect
- Electrical Standards: UL recognized, VDE approved, CSA certified
- Soldering & Cleaning: Manual soldering, alcohol-based cleaning
- Termination Types: Solder lug, screw, quick connect, wire lead
- Compatibilities: Suitable for 15A @ 125/250V AC, 15A @ 30V DC
Buy the NKK Series WR Rocker Switch: WR18BT
Order the NKK WR18BT rocker switch online today and experience durable, environmentally sealed switching solutions designed to excel in harsh conditions. Perfect for industrial, electronic, and control panel applications requiring protection against dust and water ingress. With a compact size, versatile termination options, and high electrical and mechanical lifespan, this switch ensures reliable operation in demanding environments. Take advantage of easy online purchasing and ensure your equipment maintains optimal performance with this proven, durable rocker switch.
Get NKK WR18BT today—built for durability and reliable environmental sealing in demanding industrial and electronic applications.
Frequently Asked Questions
Where can I buy NKK Switches WR18BT?
You can click on the BUY or RFQ button to purchase WR18BT from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part WR18BT?
You can download the WR18BT datasheet or visit the NKK Switches website for support.
Who is the manufacturer of WR18BT?
NKK Switches
