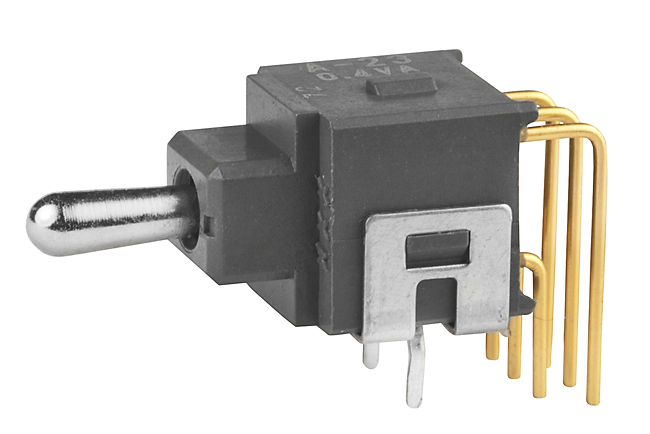

NKK Switches A23JH PCB Toggle Switch
Subminiature toggle switch suitable for PCB mounting applications. Compact design ensures reliable switching in space-constrained electronic devices. Designed specifically for logic-level circuits, it features sealed body construction for contact contamination prevention and allows automated soldering and cleaning processes. The switch employs award-winning STC contact mechanisms providing smoother actuation, enhanced contact stability, and high reliability. Constructed with glass fiber reinforced polyamide for anti-static properties and nickel-plated brass for durability, it operates effectively across -30°C to +85°C, supporting multiple pole and circuit configurations for versatile electronic controls.
NKK Switches A23JH PCB Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Operating Force: 1.47N (momentary); 1.18N (maintained) for .394” toggle
- Material: Glass fiber reinforced polyamide for antistatic; nickel plated brass for contacts
- Temperature Range: -30°C to +85°C
- Humidity Resistance: 90-95% for 240 hours @ 40°C
- Vibration and Shock: 10-55Hz with peak-to-peak amplitude of 1.5mm, 50G acceleration
- Soldering: Wave and manual soldering profiles available
- Standards: Designed for low-voltage logic circuits, not UL or CSA certified
Buy the Buy NKK Toggle Switch Part Number A23JH Online
Purchase the NKK PCB toggle switch A23JH online to ensure high-quality switching in your electronics. This compact, sealed toggle is designed for PCB mounting, providing reliable performance, corrosion resistance, and ease of automation with wave or manual soldering. Its durable construction supports numerous cycles, making it ideal for space-constrained applications needing high reliability. Order now for quick delivery and enhance your electronic devices with a proven low-voltage circuit switch that's versatile and dependable.
Buy NKK toggle switch A23JH now and experience unmatched reliability and space-saving performance for your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches A23JH?
You can click on the BUY or RFQ button to purchase A23JH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A23JH?
You can download the A23JH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A23JH?
NKK Switches
