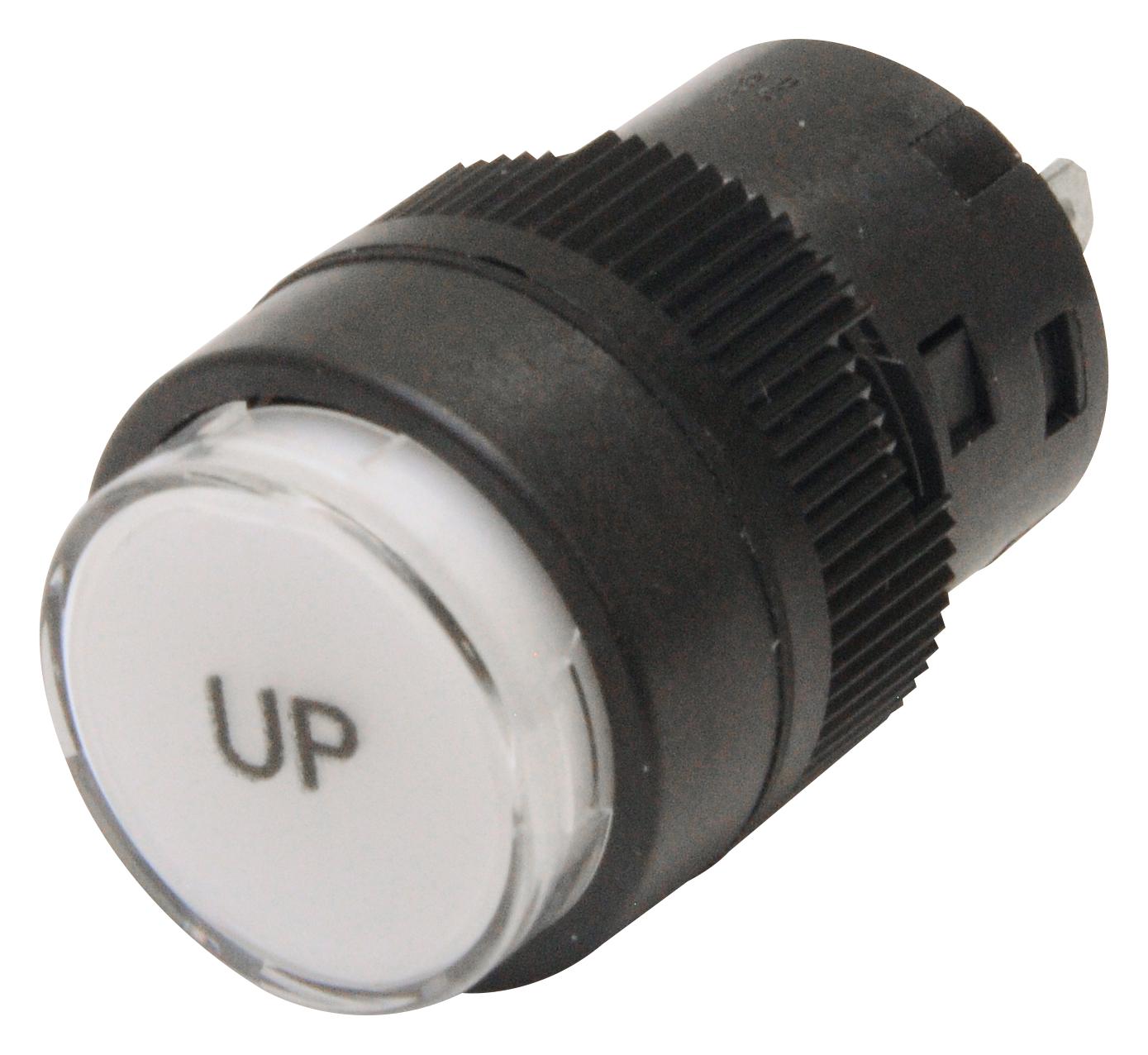

NKK Switches YB02VA001 Indicator Light
The IP65 panel seal indicator with legend features a round, clear polycarbonate lens, black legend text, and a gloss finish. It includes a white thermoplastic elastomer insert, ideal for splashproof environments. Designed for panel mounting with dimensions suitable for various panel thicknesses, it offers reliable protection against dust and water ingress. The indicator uses a bright LED without an integrated resistor, requiring an external ballast resistor if the voltage exceeds rated values. Suitable for industrial automation, control panels, and warning systems, it operates within -25°C to +50°C and has IP65 sealing conformity, ensuring durability and visual clarity in harsh conditions.
NKK Switches YB02VA001 Indicator Light Specifications:
- Lens Material: Polycarbonate
- Insert Material: Thermoplastic Elastomer
- Finish: Glossy
- Housing Material: Glass fiber reinforced polyamide
- Base Material: Glass fiber reinforced polyamide
- Lamp Terminals: Phosphor bronze with tin plating
- Operating Temperature Range: -25°C to +50°C
- Sealing Standard: IP65 IEC60529
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Shock Resistance: 50G acceleration
- Mounting Torque: 0.785Nm
- Quick Connect Force: 24.5N
- Soldering Temperature & Time: 390°C for 4 seconds
- Electrical Specs: Bright LED, no resistor included, requires external ballast resistor if voltage exceeds rated. Max Forward Current: 40mA, Forward Voltage: 19V
- Standards: UL94V-0 flammability, RoHS compliant
Buy the NK Switch Series Indicator Light: YBO2VA001
Discover the NK Switch Indicator Light YBO2VA001, engineered for durability and excellent visibility in industrial environments. Featuring IP65 splashproof sealing, polycarbonate lens, and a bright LED for clear signaling. Its rugged construction with glass fiber reinforced polyamide housing withstands vibration, shock, and humidity. Ideal for automation and control systems, this indicator guarantees safety and reliable operation even under harsh conditions. Purchase online now to ensure your control panels are equipped with a dependable, high-quality visual alert system engineered for precision and longevity.
Get NK Switch YBO2VA001 today—built for robust industrial signaling and long-lasting durability in control panels.
Frequently Asked Questions
Where can I buy NKK Switches YB02VA001?
You can click on the BUY or RFQ button to purchase YB02VA001 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB02VA001?
You can download the YB02VA001 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB02VA001?
NKK Switches
