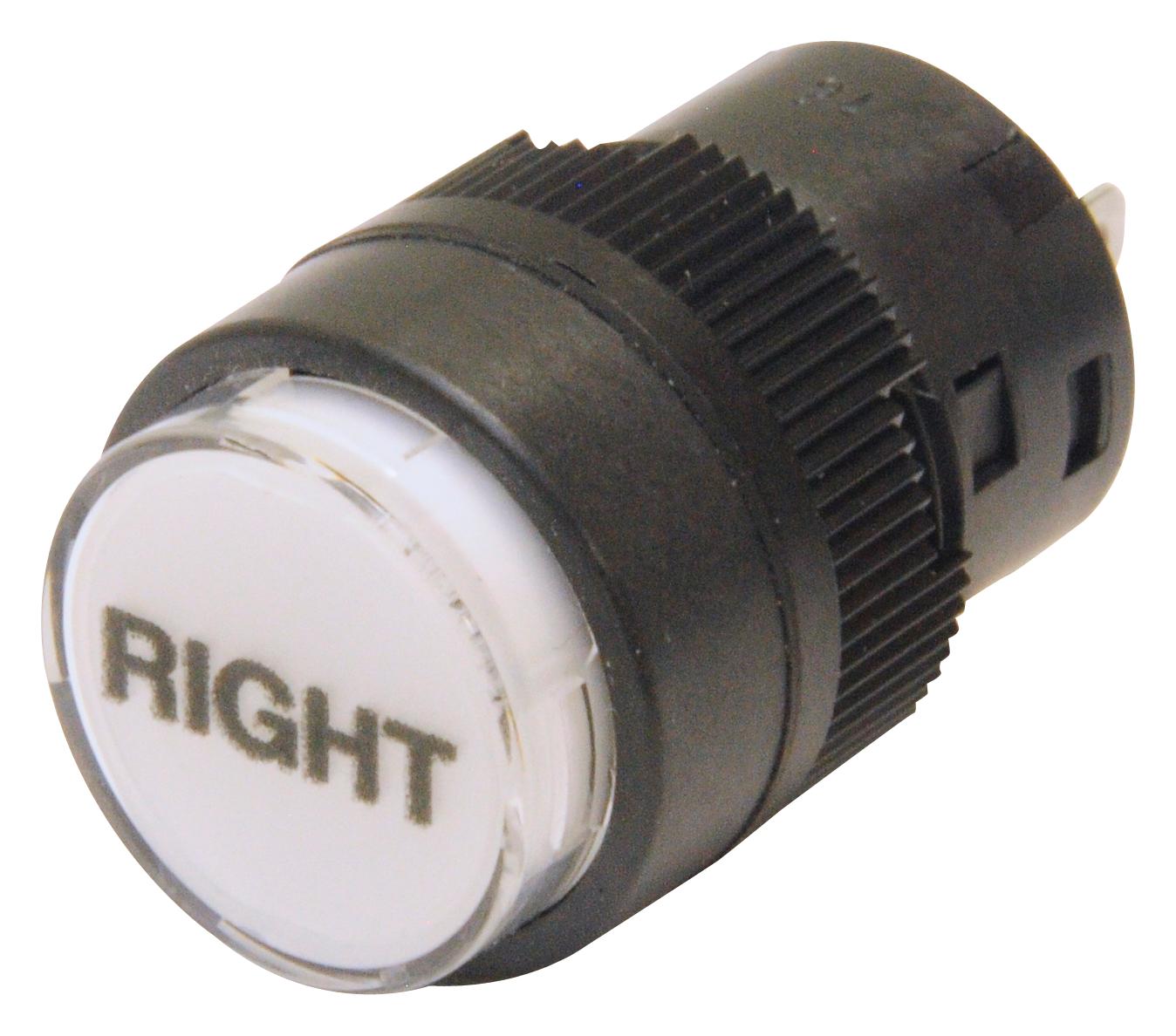

NKK Switches YB02VA003 Industrial Panel Indicator
The YBO2VA003 IP65 panel seal indicator features a polycarbonate lens and a white thermoplastic elastomer seal, designed for splashproof applications. It has a round base with a diameter of 118.0 mm and a panel cutout of approximately 24.3 mm. The indicator uses a bright LED with a forward voltage of 19V and a maximum forward current of 40mA, suitable for industrial environments. Constructed from UL94V-0 rated glass fiber reinforced polyamide, it withstands operating temperatures from -25°C to +50°C. The IP65 sealing ensures protection against dust and water, and it complies with RoHS standards. Mounting torque is 0.785 Nm, with quick connect force of 24.5N, and manual soldering at 390°C for 4 seconds.
NKK Switches YB02VA003 Industrial Panel Indicator Specifications:
- Lens Material: Polycarbonate
- Seal Material: Thermoplastic Elastomer
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Dimensions: 118.0 mm diameter, panel cutout approximately 24.3 mm
- Operating Temperature: -25°C to +50°C
- Ingress Protection: IP65
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Shock Resistance: 50G acceleration
- Humidity Tolerance: 90-95% for 96 hours @ 40°C
- Mounting Torque: 0.785 Nm
- Soldering Temperature: 390°C for 4 seconds
- Standards: RoHS compliant, UL94V-0 rated
- LED Specification: Bright LED, 19V forward voltage, 26mA typical current, resistor not included
Buy the NKK Switches Series Indicator: IP65 Splashproof Round Indicator YBO2VA003
Order the NKK Switches YBO2VA003 IP65 splashproof indicator online today. Designed for durability and reliable performance in harsh environments, it features a robust polycarbonate lens, UL94V-0 rated housing, and a bright LED indicator. Easy to install with quick connect force and sealed to IP65 standards, this indicator is ideal for industrial control panels. Elevate your equipment with a reliable, RoHS-compliant component that withstands moisture, dust, vibration, and shock, ensuring long-lasting operation in demanding applications.
Get NKK Switches YBO2VA003 today—built for durability, splashproof performance, and industrial reliability.
Frequently Asked Questions
Where can I buy NKK Switches YB02VA003?
You can click on the BUY or RFQ button to purchase YB02VA003 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB02VA003?
You can download the YB02VA003 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB02VA003?
NKK Switches
