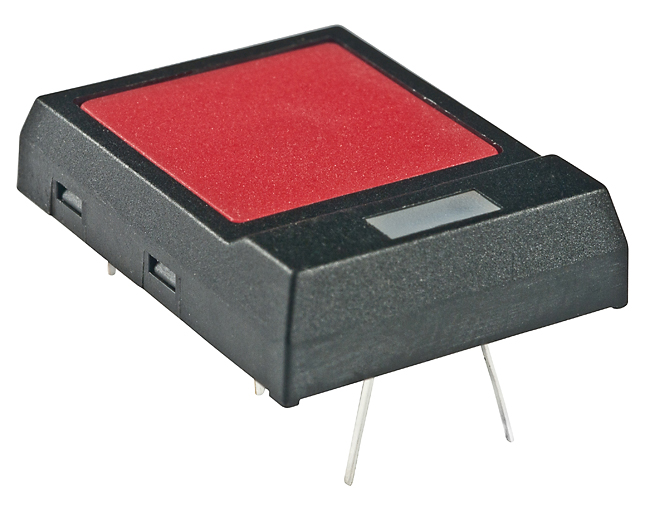

NKK Switches JF15RP1CC Illuminated Tactile Switch
This ultra-thin tactile illuminated PCB switch offers a low-profile design with integrated LED illumination for enhanced visibility. It features a responsive tactile dome contact providing crisp feedback, suitable for compact electronic applications requiring reliable actuation. The switch utilizes rubber seal construction to prevent contact contamination and supports automated soldering and cleaning processes. Available in various LED colors and actuator styles, it is designed for low-voltage, logic-level circuits, ensuring safe operation with a long mechanical life of 500,000 cycles and resistive load capacity of 50mA at 24V DC. Its space-saving form factor enables side-by-side mounting on a standard PCB grid.
NKK Switches JF15RP1CC Illuminated Tactile Switch Specifications:
- Profile height: 5.7mm (.224") from PCB to top of switch
- LED Colors: Red, Green, Yellow, Blue, Gray; Spot and Full Face Illumination options
- Electrical Capacity: 50mA @ 24V DC, Resistive load
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute minimum
- Mechanical Life: 500,000 operations minimum
- Actuation Force: 3.0N (flush), 2.0N (sculptured)
- Total Travel: .016” (0.4mm) for flush, .031” (0.8mm) for sculptured actuator
- Housing Material: Polyamide for spot illumination, polycarbonate for full face
- Seal Material: Nitrile butadiene rubber
- Base Material: Glass fiber reinforced polyester
- Contact Material: Phosphor bronze with silver plating
- Terminal Type: Crimped, compatible with standard PCB grid (.100"/2.54mm)
- Environmental Range: -13°F through +158°F, 90-95% humidity for 96 hours @ 40°C
- Soldering: Wave or manual soldering recommended
- Standards: Designed for low-voltage, low-current logic circuits, not UL or CSA recognized
Buy the NKK Series JF Illuminated Tactile Switch: JF15RP1CC
Secure your order for the NKK Illuminated Tactile Switch now and enjoy quick delivery and seamless online purchasing. This low-profile switch features integrated LED illumination, providing clear visibility and tactile feedback for your electronic designs. Its compact form factor and sealed construction make it ideal for space-constrained applications demanding durability and precision. Whether you need spot or full face illumination, this switch ensures reliable performance with a mechanical life of 500,000 cycles. Perfect for low-voltage, logic-level circuits, it supports automated soldering and cleaning, simplifying your manufacturing process.
Buy NKK JF15RP1CC switch now and experience unmatched reliability and performance for your compact electronic projects.
