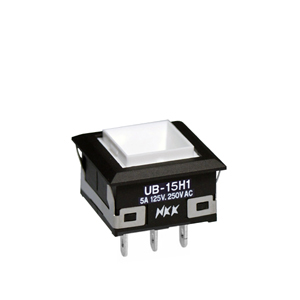

NKK Switches UB15KKW015C Low Profile Pushbutton
A low-profile, illuminated pushbutton switch suitable for PCB mounting and soldering. Designed for user-friendly operation and reliable illumination. Features a compact body for tight spaces, integrated bright LEDs in multiple colors, and quick-make, quick-break contact mechanism for prolonged electrical life. It is rated for 5A at 125/250V AC and 0.4VA at 28V DC, with a robust construction including glass fiber reinforced polyamide housing and stainless steel contacts. Suitable for various industrial and electronic control applications, supporting a long mechanical and electrical lifespan and meeting recognized UL and CSA standards.
NKK Switches UB15KKW015C Low Profile Pushbutton Specifications:
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Operating Temperature Range: -25°C to +50°C for Illuminated; -20°C to +70°C for Non-illuminated
- Electrical Ratings: 5A @ 125/250V AC, 0.4VA @ 28V DC maximum
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms maximum for gold
- Insulation Resistance: Minimum 200 megaohms @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations; Electrical Life: 200,000 operations
- Nominal Operating Force: 1.9N for single pole, 2.55N for double pole
- Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total Travel 0.091” (2.3mm)
- Soldering Method: Wave soldering or manual soldering profiles specified, not process sealed
- Certifications: UL Recognized, CSA Certified when ordered with markings
- LED Specification: Bright LED options in red, amber, green, white, and blue; forward current up to 30 mA; forward voltage 1.85-3.2 V
- Panel Thickness Range: 0.039” to 0.126” (1.0mm to 3.2mm)
- Switch Terminals: Solder Lug, Straight PC
- Construction: Switch with snap-acting contact mechanism, quick make/break, and indicator options
Buy the NKK Series UB Low Profile Pushbutton: UB15KKW015C
Purchase the NKK UB15KKW015C low-profile illuminated pushbutton switch online today. Engineered for durability and precision, it features bright LEDs, PCB mounting, and a compact design ideal for tight spaces. Rated for 5A at 125/250V AC and 0.4VA at 28V DC, it offers long mechanical and electrical life, meeting UL and CSA standards. Its reliable contact mechanism ensures consistent performance in industrial control systems, with easy soldering and installation. Enhance your electronic or industrial project with this highly durable switch.
Get NKK UB15KKW015C today—built for precision and long-lasting durability with bright LEDs and reliable operation.
