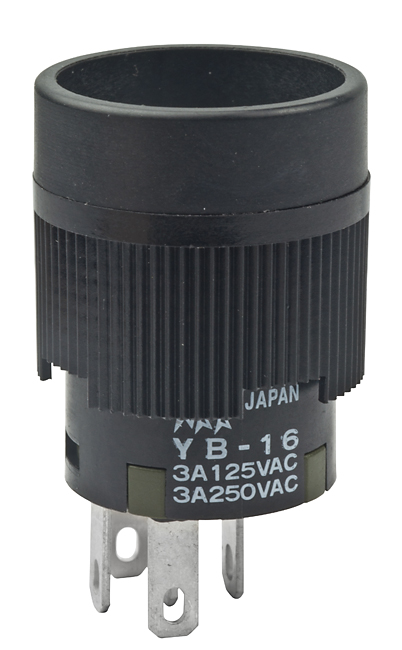

NKK Switches YB16CKW01 Short Body Pushbutton
This short body illuminated pushbutton is designed for panel mounting, offering a compact form factor ideal for control panels. It features LED illumination options with multiple colors, snap-action contacts for shock resistance and long life, and a sealed design meeting IP65 standards for dust and splash protection. The switch's durable construction includes stainless steel contacts, polycarbonate housing, and thermoplastic elastomer seals, making it suitable for industrial environments requiring reliable and visually indicated control elements.
NKK Switches YB16CKW01 Short Body Pushbutton Specifications:
- Power Level (silver): 3A @ 125/250V AC
- Logic Level (gold): 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms max. for silver, 100 milliohms max. for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1000V AC minimum between contacts for 1 minute, 1500V AC minimum between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit
- Electrical Life: 200,000 operations minimum for maintained circuit
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (nonilluminated)
- Housing/Bezel: UL94V-0 polyamide
- Contacts: Phosphor bronze with silver or gold plating
- Seal/Frame: Thermoplastic elastomer
- Mounting: Bushing or snap-in mount, panel thickness .020” - .150”
- Ingress Protection: IP65 for panel seal models
- Soldering: Manual, profile A, specific temperature/time recommended
- Standards & Certifications: UL Recognized, CSA Certified, IEC60529 IP65
Buy the NKK Switches YB16CKW01 – Reliable Control Components for Industrial Applications
Enhance your control panel with the reliable NKK Short Body Pushbutton. Featuring LED illumination options, IP65 dust and splash protection, shock-resistant contacts, and durable materials, it ensures long-lasting performance in demanding industrial environments. With easy mounting options and certified standards, this compact switch provides both visual indication and dependable operation. Perfect for automation, machinery, and control systems, it combines quality, safety, and functionality, making it an ideal choice for professional applications. Order online today to streamline your setup.
Order your NKK Series YB16CKW01 short body illuminated pushbutton today and give your projects the dependable control solution they deserve.
Frequently Asked Questions
Where can I buy NKK Switches YB16CKW01?
You can click on the BUY or RFQ button to purchase YB16CKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB16CKW01?
You can download the YB16CKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB16CKW01?
NKK Switches
