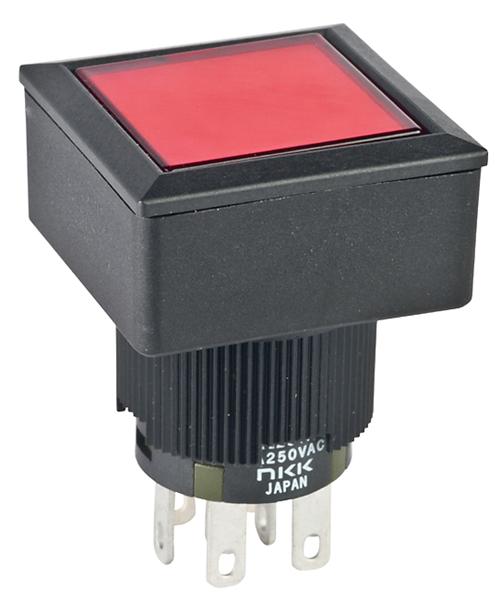

NKK Switches YB215CWSKW01CUL5C24CB IP65 Pushbutton Switch
Square actuator pushbutton switch with IP65 ingress protection, featuring a red LED indicator and a red-white cap. Suitable for industrial control panels and automation applications with durable sealing and visual indication. It offers reliable operation with a snap-action mechanism, sealed contacts, and excellent environmental resistance, including splashproof design compliant with IEC 60529 standards. The switch’s robust construction includes epoxy-sealed terminals, a long mechanical lifespan, and various LED color options for visual signaling. Ideal for use in harsh environments requiring dust and water resistance, concise and easily integrated into industrial systems.
NKK Switches YB215CWSKW01CUL5C24CB IP65 Pushbutton Switch Specifications:
- Poles & Circuits: SPDT Normally Open/Closed, ON-ON, optional DPDT
- Contact Rating: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms for silver, 100 milliohms for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case for 1 minute
- Mechanical Life: 1,000,000 operations; Electrical Life: 200,000 operations
- Operating Pressure: 1.5N for single pole, 3.0N for double pole
- Pretravel & Overtravel: 0.059 inch (1.5mm), Total Travel: 0.118 inch (3.0mm), in latchdown 0.098 inch (2.5mm)
- Housing Material: UL94V-0 glass fiber reinforced polyamide
- Base Material: UL94V-0 polycarbonate
- Seal: IP65 IEC60529 standard, splashproof and dust tight
- Operating Temperature Range: -25°C to +70°C
- Soldering: Manual, up to 390°C for 4 seconds maximum
- LED Options: Red, amber, green, white, with various illumination voltages
- Terminals: Solder lug and quick connect, epoxy sealed
- Mounting Torque: 0.785 Nm (6.95 Ibf.in)
Buy the Buy NKK YB2 Series Pushbutton Part Number YB215CWSKW01CUL5C24CB Online
Purchase the NKK YB2 Series IP65 sealed pushbutton switch online today. Featuring a durable square actuator, integrated LED indicator, climate-resistant sealing, and versatile terminal options, this switch is perfect for demanding industrial environments. Its long mechanical and electrical lifespan ensures dependable operation, and the splashproof design meets IEC 60529 standards for dust and water resistance. Ideal for control panels, automation, and machinery, this switch combines robust construction with easy installation for seamless integration into any industrial system.
Buy NKK YB2 Series Pushbutton with IP65 splashproof design and LED indicator now and experience unmatched reliability and performance in industrial controls.
Frequently Asked Questions
Where can I buy NKK Switches YB215CWSKW01CUL5C24CB?
You can click on the BUY or RFQ button to purchase YB215CWSKW01CUL5C24CB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB215CWSKW01CUL5C24CB?
You can download the YB215CWSKW01CUL5C24CB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB215CWSKW01CUL5C24CB?
NKK Switches
