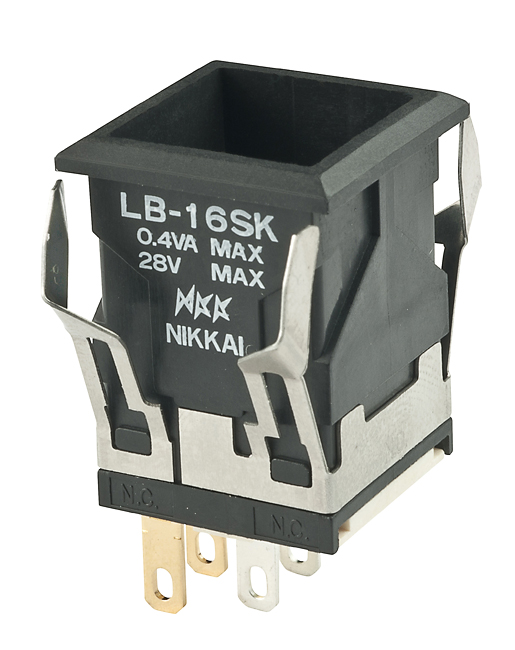

NKK Switches LB16SKG01 Illuminated Pushbutton
The standard size illuminated pushbutton switch features a snap-in mounting mechanism for easy panel installation, designed for reliable operation in various environments. It incorporates bright LEDs for clear indication, durable polyamide housing, and options for nonilluminated or LED-lit configurations. The switch offers multiple colors, cap styles, and electrical ratings up to 3A at 125/250V AC, with IP65 sealing for panel-sealed models. Ideal for control panels, industrial automation, and machinery, it ensures long-lasting performance and easy maintenance.
NKK Switches LB16SKG01 Illuminated Pushbutton Specifications:
- Housing Material: Polyamide (UL94V-0)
- Mounting Style: Snap-in
- Electrical Rating: 3A @ 125V/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms for silver, 100 milliohms for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations for maintained circuit, 1,000,000 for momentary
- Pushbutton Force: 3.92N downward, connector force 52.95N
- Pretravel and Overtravel: 1.5mm each, total travel 3.0mm
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Environmental: Humidity up to 95% for 96 hours at 40°C
- Panel Seal: IP65 (for sealed models), with silicone gasket
- Standards & Certifications: Recognized by UL, cUL, CSA with appropriate markings
- Colors & Cap Types: Various lens and filter colors, solid, insert, and spot illuminated caps available
Buy the NKK Series LB Illuminated Pushbutton: LB16SKG01
Experience reliable operation with the NKK LB16SKG01 illuminated pushbutton switch, designed for easy installation with snap-in mounting. Features bright LEDs for clear indication, durable polyamide housing, and various color options. Rated at 3A for efficient power handling, sealing to IP65 standards, and capable of millions of operations, making it ideal for industrial control systems. Order online now for fast delivery and ensure smooth operation in your machinery and control panels with robust licensing and certifications.
Get NKK LB16SKG01 illuminated pushbutton today—built for precision and long-lasting durability in control panels and industrial automation.
Frequently Asked Questions
Where can I buy NKK Switches LB16SKG01?
You can click on the BUY or RFQ button to purchase LB16SKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16SKG01?
You can download the LB16SKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16SKG01?
NKK Switches
