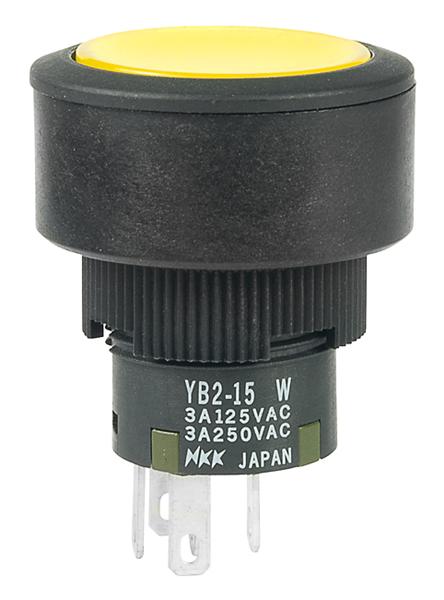

NKK Switches YB225CWCKG01NJB Panel Seal Pushbutton
This is a standard-sized illuminated pushbutton switch designed for flush mounting. It features a durable construction suitable for various control panels and applications, providing both visual indication and reliable operation.
NKK Switches YB225CWCKG01NJB Panel Seal Pushbutton Specifications:
- Size: 22mm and 24mm pushbuttons with 1.8mm above-panel dimension
- Sealing: IP65 of IEC60529, dust tight and splashproof
- Contact Ratings: 3A at 125V AC or 250V AC, 0.4VA max at 28V AC/DC
- Electrical Resistance: 50 milliohms max for silver contacts, 100 milliohms max for gold contacts
- Dielectric Strength: 1000V AC for 1 minute between contacts, 1500V AC for case contact
- Mechanical Life: 1,000,000 operations; Electrical Life: 200,000 operations for maintained circuit
- Operating Temperature: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Material: Black glass fiber reinforced polyamide bezel, polycarbonate housing, phosphor bronze contacts
- Mounting: Panel mounting with torque of 0.785Nm, quick connect terminals
- LED: Bright or super bright LED options with various colors, requiring external resistor if voltage exceeds rated
- Environmental: Humidity 90-95% for 96 hours at 40°C, vibration and shock resistance as per IEC standards
Buy the NKK Series YB2 – Reliable Control Components for Industrial Applications
Order NKK Series YB2 Panel Seal Pushbuttons online today and experience the highest quality, reliable performance, IP65 protection, and customizable LED illumination options designed for industrial control panels. Perfect for applications requiring splashproof, dust-tight operation with long-lasting durability and crisp actuation. Choose from various colors and styles to match your panel design, ensuring easy operation and visual status indication in demanding environments. Buy online now for quick delivery and trusted quality.
Get NKK Series YB2 today—built for durability and precision in industrial control applications.
Frequently Asked Questions
Where can I buy NKK Switches YB225CWCKG01NJB?
You can click on the BUY or RFQ button to purchase YB225CWCKG01NJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB225CWCKG01NJB?
You can download the YB225CWCKG01NJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB225CWCKG01NJB?
NKK Switches
