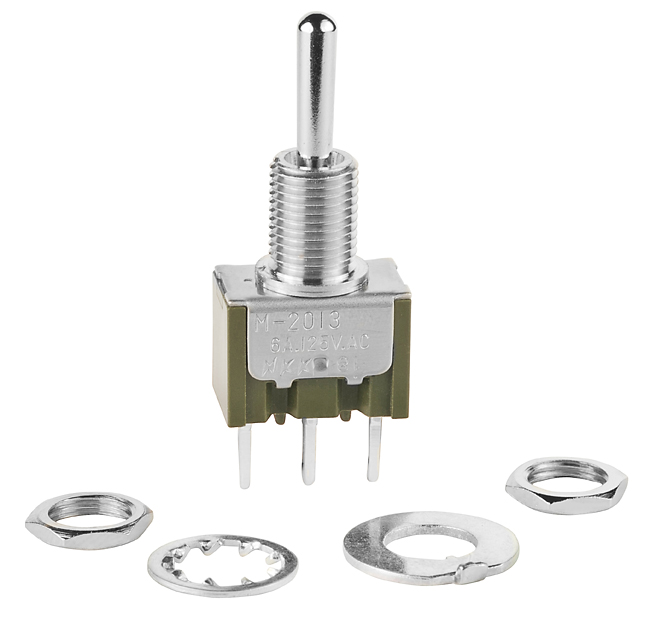

NKK Switches M2013SS1W03 Miniature Toggle Switch
This is a miniature toggle switch suitable for multi-function applications. It offers reliable switching performance in compact electronic devices. The switch features high insulation barriers, anti-rotation design, and epoxy sealed terminals for protection against contaminants. It is rated for 6A at 125V AC, with dual ratings for power and logic levels (silver over silver and gold over brass/copper). Suitable for mounting on panels with a maximum thickness of 0.047 inches, it includes options for splashproof models with IP67 sealing, making it ideal for industrial and electronic control applications.
NKK Switches M2013SS1W03 Miniature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 6A @ 125V AC; 3A @ 250V AC; 0.4VA @ 28V DC
- Contact Resistance: 10 milliohms maximum for silver; 20 milliohms maximum for gold
- Insulation Resistance: 1000 megohms minimum @ 500V DC
- Dielectric Strength: 1000V AC minimum between contacts for 1 minute; 1500V AC minimum contact to case for 1 minute
- Mechanical Life: 100,000 operations minimum; 50,000 for certain models
- Electrical Life: 50,000 operations minimum for gold contacts
- Angle of Throw: Typically 30°
- Operating Temp Range: -30°C to +85°C
- Vibration Resistance: 10-55Hz, peak-to-peak amplitude 1.5mm, 2 hours in 3 directions
- Shock Resistance: 50G acceleration for 3 directions
- Sealing: Splashproof bushing options available meeting IP67 IEC standards
- Mounting Torque: 3.0Nm for large bushings; 1.5Nm for standard bushings
- Soldering: Wave soldering and manual soldering profiles available
- Certifications: UL and CSA recognized with markings; UL94V-0 flame rating for case
- Material: Brass with chrome plating, polycarbonate case, epoxy sealed terminals
