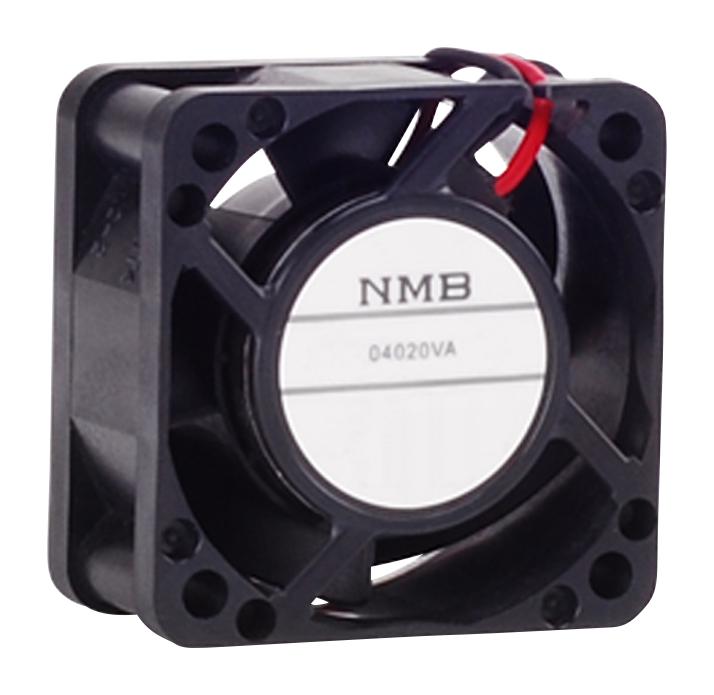

NMB TECHNOLOGIES 04020VA12QCA00 12V DC Centrifugal Fan
The NMB TECHNOLOGIES 04020VA-12Q-CA-00 is a high-performance 12V DC centrifugal fan engineered for demanding industrial environments. It boasts auto restart and polarity protection for enhanced reliability. The fan's casing and impeller are constructed from UL94V-0 plastic, ensuring fire resistance. With a rated voltage of 12V and an input voltage range of 9.0-13.2V, this fan delivers an airflow of 11000 CFM and a static pressure of 0.35 inches of water. Its compact design and robust construction make it suitable for a wide range of applications including ventilation, cooling, and air circulation in industrial equipment, HVAC systems, and electronic devices.
NMB TECHNOLOGIES 04020VA12QCA00 12V DC Centrifugal Fan Specifications:
- Motor Protection: Auto Restart/Polarity Protection
- Insulation Resistance: 10M Ω or over with a DC500V Megger
- Dielectric Withstand Voltage: AC 700V 1s
- Allowable Ambient Temperature Range (Operating): -10°C ~ +70°C
- Allowable Ambient Temperature Range (Storage): -40°C ~ +70°C
- IP Code: IP69K
- Expected Life: 25°C 100,000 Hours (L10)
- Casing Material: Plastic (Black) UL94V-0
- Impeller Material: Plastic (Black) UL94V-0
- Bearing Type: Ball Bearing
- Lead Wire: UL3385, AWG26, +Red, -Black
- Rated Voltage: 12V
- Input Voltage Range: 9.0 ~ 13.2V
- Current: 0.13A
- Input Power: 1.56W
- Speed: 11000 RPM
- Air Flow: 12.36 CFM
- Static Pressure: 0.35 inches of water
- Noise Level: 42.0 dB
- Mass: 40g
- Airflow Outlet: Air Out Over Struts
- Rotation: Clockwise
