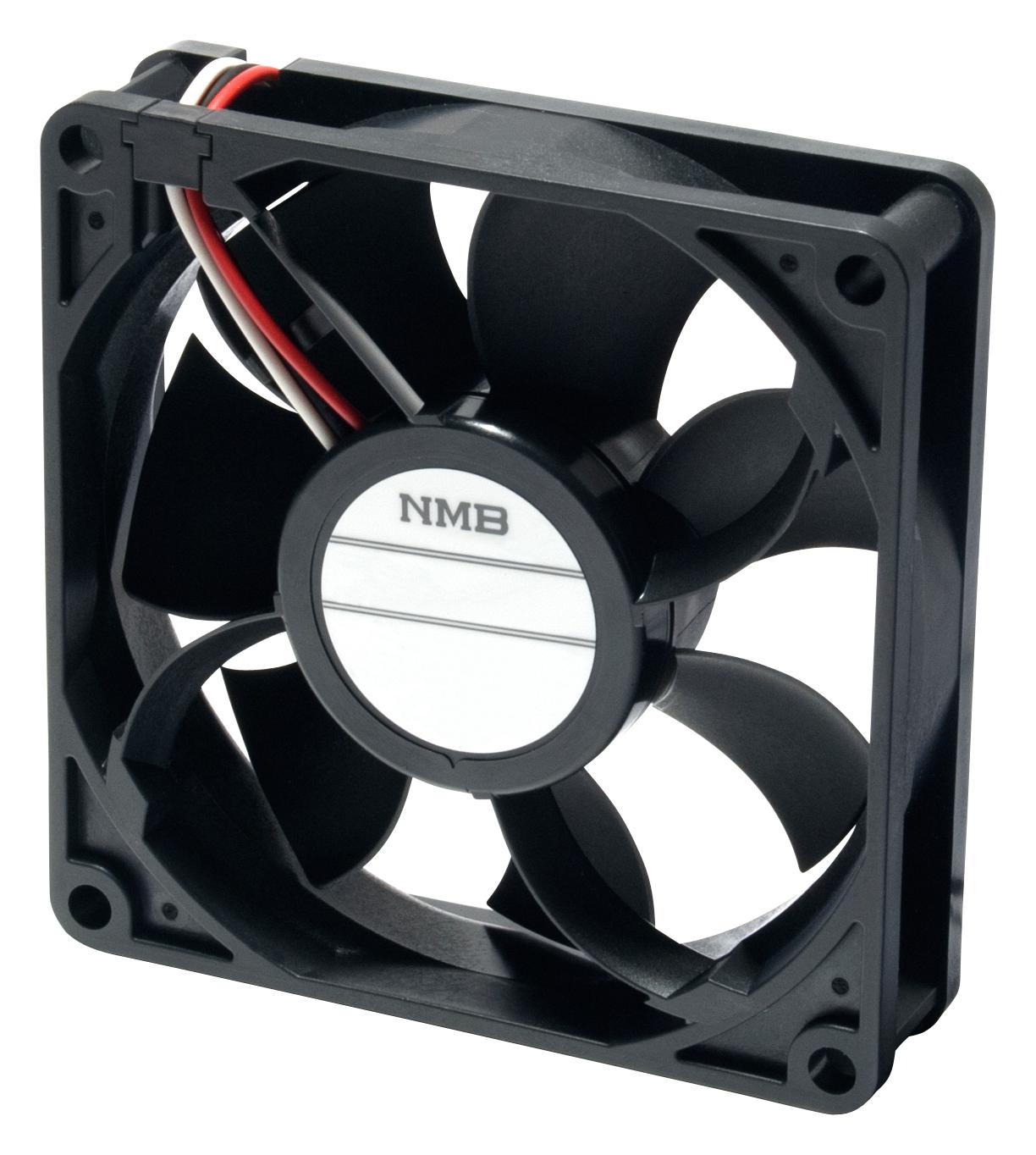

NMB TECHNOLOGIES 08020SA12JAT00 Cooling Fan
The NMB 08020SA series fan features a compact design with a plastic casing and UL94V-0 rating, offering reliable operation in various environments. It is equipped with ball bearings for durability, and operates within a temperature range of -10°C to +70°C. The fan has an airflow rate of up to 399 mmin, with noise levels around 27.5 dBA, making it suitable for cooling electronic devices and industrial equipment. It supports multiple voltages and current ratings, ensuring flexibility for different applications. Its sturdy construction ensures long-lasting performance in demanding conditions.
NMB TECHNOLOGIES 08020SA12JAT00 Cooling Fan Specifications:
- Casing Material: Plastic (Black), UL94V-0
- Impeller Material: Plastic (Black)
- Bearing Type: Ball Bearing
- Lead Wire: UL3385, AWG26, Red (+), Black (-)
- Operating Voltage Range: 6.0V to 13.8V for 12V models, 9.0V to 27.6V for 24V models
- Power Consumption: 0.05W to 0.09W depending on model
- Airflow: 2600 to 3990 mmin
- Static Pressure: 0.78 to 1.13 mmH2O
- Noise Level: 27.5 to 37.5 dBA
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Expected Life: 40,000 hours at 60°C
- Failure Rate: 10%
- Dimensions: Panel cut-out approximately 26 mm, thickness approx. 4.0 mm
- Rotation: Clockwise
- Inlet Airflow Outlet: Air Out Over Struts
- Certifications: UL Recognized
Buy the NMB 08020SA – Reliable Cooling Fan for Industrial Applications
Enhance your electronic cooling systems with the NMB 08020SA series fan, featuring UL94V-0 rated plastic casing, ball bearings for longevity, and adjustable voltages. With airflow up to 399 mmin and noise levels around 27.5 dBA, this fan ensures efficient thermal management in industrial and electronic applications. Its compact design, operating temperature range from -10°C to +70°C, and 40,000-hour lifespan make it the ideal choice for reliable, long-term performance. Purchase online easily and ensure your equipment stays cool and efficient.
Buy NMB 08020SA series fan now and experience unmatched reliability, quiet operation, and durable performance for electronic cooling and industrial needs.
Frequently Asked Questions
Where can I buy NMB TECHNOLOGIES 08020SA12JAT00?
You can click on the BUY or RFQ button to purchase 08020SA12JAT00 from an authorized NMB TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 08020SA12JAT00?
You can download the 08020SA12JAT00 datasheet or visit the NMB TECHNOLOGIES website for support.
Who is the manufacturer of 08020SA12JAT00?
NMB TECHNOLOGIES
