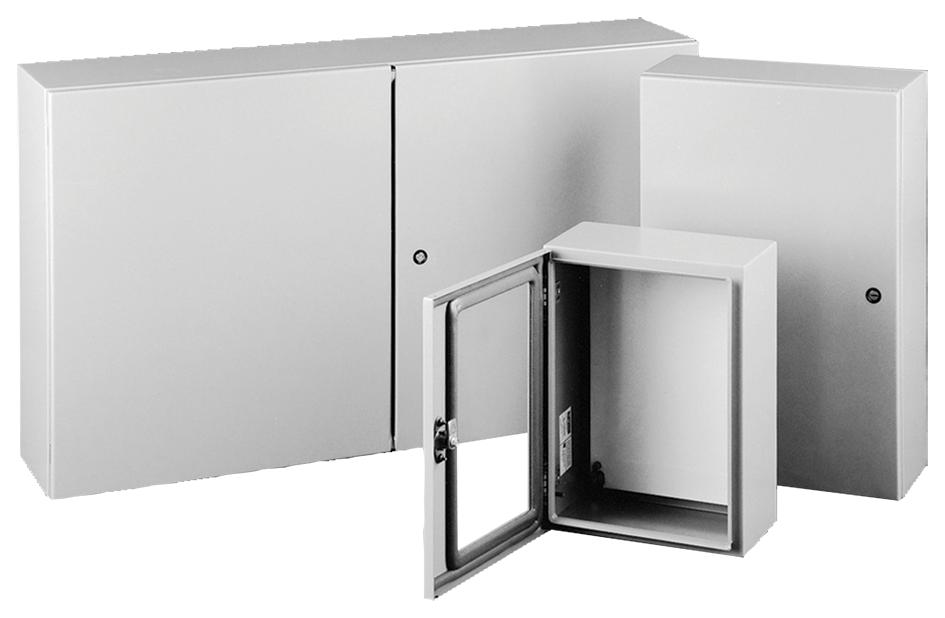

NVENT HOFFMAN CTD366012 Industrial Enclosure
The C-TD366012 is a Concept wall-mount two-door enclosure equipped with windows, designed for machine control applications. It features a streamlined appearance, flush quarter-turn latches, and a durable finish. The enclosure is finished with ANSI 61 gray polyester powder paint on both interior and exterior surfaces. It offers an IP55 and NEMA/EEMAC-12 protection rating, with seams that are continuously welded and ground smooth for durability. The doors are corner-formed with hidden hinges for a clean look, and utilize simple, easy-to-remove hinge pins with captivation clips. The design includes high-torque, thread-less studs and fasteners for secure enclosure closure, and a minimum-width body flange allowing a maximum door opening of 210 degrees. External formed body flanges, panel mounting studs compatible with optional Concept panels, and mounting holes for external wall brackets are included. The enclosure features a seamless foam-in-place gasket for tight sealing, quarter-turn slotted latches, and door alignment devices for wider doors. For additional functionality, there are provisions for high-impact thermoplastic data pockets, and hardware kits containing panel mounting nuts, grounding hardware, and sealing washers are included. Suitable for industrial applications.
NVENT HOFFMAN CTD366012 Industrial Enclosure Specifications:
- Material: Mild Steel
- Finish: ANSI 61 Gray polyester powder paint
- Protection Ratings: IP55, NEMA/EEMAC 12
- Seams: Continuously welded and ground smooth
- Doors: Corner-formed with hidden hinges
- Hinges: Captivation clip hinge pins, easy to remove
- Fasteners: High-torque threadless studs and fasteners
- Body Flange: Minimum width for maximum door opening of 210 degrees
- External body flange: Formed
- Panel Mounting: Studs compatible with Concept panels
- Mounting Holes: For external wall brackets
- Gasket: Seamless foam-in-place for tight seal
- Latches: Quarter-turn slotted latch system
- Door Alignment: Device for wider doors
- Provisions: Thermoplastic data pocket, hardware kit with nuts, grounding hardware, sealing washers
- Application: Suitable for industrial control applications
Buy the Pentair P366012 – Reliable Industrial Control Enclosure for Machine Applications
Discover the Pentair P366012 industrial control enclosure online today. Featuring a durable ANSI 61 gray powder-coated finish, IP55 protection, and NEMA 12 compliance, this enclosure is ideal for machine control systems in harsh environments. Designed with seamless welded seams, corner-formed doors, hidden hinges, and easy-to-access quarter-turn latches, it ensures secure enclosure integrity and accessibility. Equipped with external mounting holes, panel studs, and provisions for thermoplastic data pockets, this enclosure offers maximum flexibility and long-lasting protection for your industrial control applications. Purchase online now for reliable, heavy-duty enclosure performance.
Get Pentair P366012 today—built for durability with seamless gasket and secure locking for industrial control needs.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN CTD366012?
You can click on the BUY or RFQ button to purchase CTD366012 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part CTD366012?
You can download the CTD366012 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of CTD366012?
NVENT HOFFMAN
