NXP BFU768F115 RF High Linearity Transistor
The BFU768F is an NPN wideband silicon germanium RF transistor designed for high-speed, low-noise, and high linearity applications in RF and microwave frequency ranges, including Wi-Fi, WLAN, WiMAX, and ZigBee. Encased in a compact SOT343F package, it offers excellent performance with low noise figures (0.50 dB at 2.4 GHz), high IP3 figures, and a broad operating voltage range. Its fast switching times, unconditional stability, and high gain make it suitable for low power and high linearity RF amplifier circuits, especially in LNA applications for the 2.4 GHz and 5 GHz bands.
NXP BFU768F115 RF High Linearity Transistor Specifications:
- Collector-base voltage V(BR)CBO: 10 V
- Collector-emitter voltage V(BR)CEO: 28 V
- Emitter-base voltage VEBO: 1.0 V
- Collector current Io: 70 mA
- DC gain hFE: 155 to 505
- Insertion power gain: 13.1 dB at 2.4 GHz, 12.2 dB at 5 GHz
- Noise figure: 0.50 dB at 2.4 GHz, 0.74 dB at 5.8 GHz
- Third-order intercept point IP3: 15.7 dBm at 2.4 GHz, 18.8 dBm at 5 GHz
- Power dissipation: 220 mW
- Package: SOT343F surface-mount plastic package

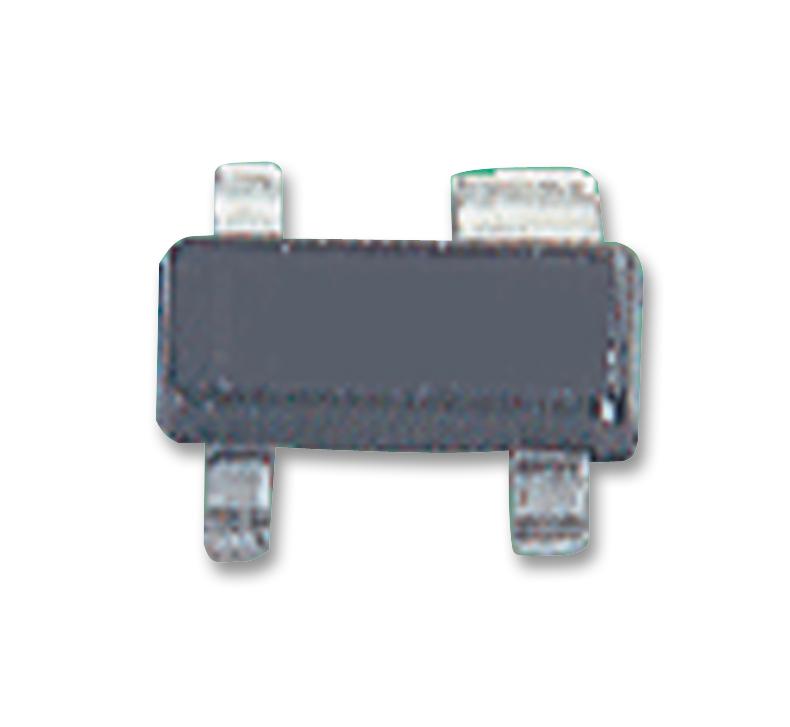

Buy the NXP Series BFU768F RF Transistor: 115
Purchase the NXP BFU768F RF transistor online today and enhance your RF and microwave circuit designs. Its high linearity, low noise figure, and fast switching times make it ideal for applications like Wi-Fi, WLAN, WiMAX, and ZigBee communication modules. Encased in a compact SOT343F package, it provides reliable, unconditionally stable performance across a broad frequency range. Whether for low power amplifier circuits or high-speed RF modules, this transistor ensures optimal RF performance with minimal noise. Order now for fast delivery and long-lasting durability.
Get NXP BFU768F today—built for high linearity, low noise, and fast switching in RF applications.
Frequently Asked Questions
Where can I buy NXP BFU768F115?
You can click on the BUY or RFQ button to purchase BFU768F115 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part BFU768F115?
You can download the BFU768F115 datasheet or visit the NXP website for support.
Who is the manufacturer of BFU768F115?
NXP
