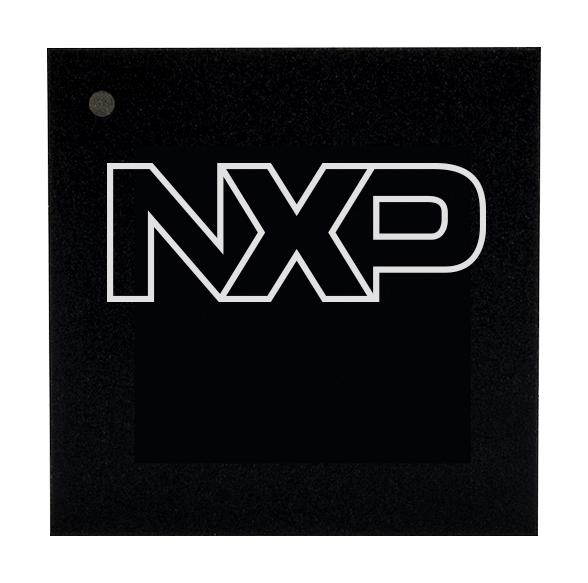

NXP MIMX8QM6AVUFFAB Multimedia Processor
The processor is designed for automotive and infotainment applications, featuring a multicore architecture with two Arm Cortex-A72, four Cortex-A53, and two Cortex-M4F cores. It supports 4K HDR video decoding, multiple display outputs including HDMI, eDP, LVDS, and MIPI-DSI, along with high-performance GPU and multimedia processing units. The device includes modern security features like secure boot and trusted execution, comprehensive peripheral interfaces such as PCIe 3.0, SDIO, UART, I2C, and quadrature accelerators, making it suitable for advanced automotive and entertainment systems requiring high reliability and multimedia capabilities.
NXP MIMX8QM6AVUFFAB Multimedia Processor Specifications:
- Package Size: 29 x 29 mm, 0.75 mm pitch
- Processor Cores: 2x Cortex-A72, 4x Cortex-A53, 2x Cortex-M4F
- Max Frequency: A72 up to 1.6 GHz, A53 up to 1.2 GHz, M4 at 264 MHz
- GPU: 16x Vec4 shaders, supporting OpenGL, Vulkan, OpenCL
- Video: 4K HDR decode, H.265, H.264, VP8, VP9, JPEG/MJPEG decode/encode
- Memory: LPDDR4 up to 1600 MHz, DDR3/LPDDR3 support
- Video Interfaces: HDMI, eDP, LVDS, MIPI-DSI, CSI
- Display Output: Support for UHD 4K60 or four HD displays
- Peripheral: PCIe 3.0, SDIO, SATA, Ethernet, USB 3.0 and 2.0
- Security: Secure boot, AES, RSA, TrustZone, HSM
- Operating Voltage: 1.05 V to 1.15 V for cores, 3.3 V for I/O
- Operating Temperature: -40°C to 125°C
- Package includes integrated peripherals, security, high-speed interfaces, and multimedia processing units.
Buy the NXP Series i.MX 8QuadMax Automotive Video Processing: MIMX8QM6AVUFFAB
Discover the high-performance multimedia processor designed for automotive and infotainment systems. Featuring multi-core ARM Cortex processors, 4K video decoding, versatile display outputs, secure boot, and extensive peripheral interfaces, this device ensures seamless multimedia experiences and reliable operation. Ideal for next-generation automotive infotainment, digital dashboards, and advanced driver-assistance systems, the processor combines robust security features with high-speed connectivity, delivering optimal performance for demanding embedded applications. Purchase online now to accelerate your development of next-gen automotive entertainment systems.
Get NXP i.MX 8QuadMax today—built for automotive-grade multimedia performance and reliable operation in demanding applications.
Frequently Asked Questions
Where can I buy NXP MIMX8QM6AVUFFAB?
You can click on the BUY or RFQ button to purchase MIMX8QM6AVUFFAB from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MIMX8QM6AVUFFAB?
You can download the MIMX8QM6AVUFFAB datasheet or visit the NXP website for support.
Who is the manufacturer of MIMX8QM6AVUFFAB?
NXP
