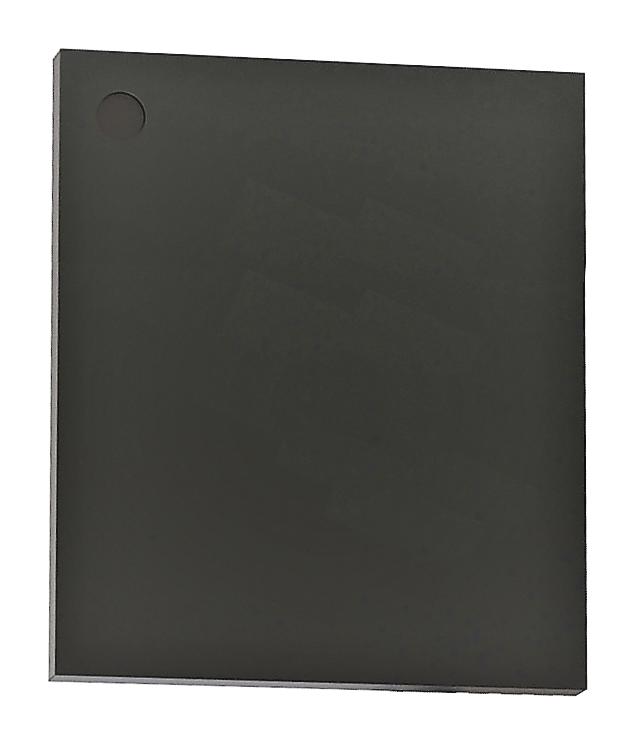

NXP CBTU02044HEJ High-Speed Differential Switch
CBTU02044 is a high-speed differential 1-to-2 switch designed for high-bandwidth applications such as PCIe-Gen4, MIPI, DP1.4, and DDR interfaces. It features low insertion loss, excellent isolation, and support for multiple differential channels, making it ideal for server and client high-speed data routing. The compact HUQFN16 package with a 0.4 mm pitch ensures minimal PCB space utilization while maintaining high performance. This switch operates from 1.62 V to 3.63 V and includes power-down features for energy efficiency, suitable for advanced electronic systems demanding high data integrity.
NXP CBTU02044HEJ High-Speed Differential Switch Specifications:
- Package: HUQFN16, 1.6 mm x 2.4 mm x 0.5 mm, 0.4 mm pitch
- Supply Voltage Range: 1.62 V to 3.63 V
- Low Insertion Loss: 0.56 dB at 100 MHz, 1.1 dB at 5 GHz, 1.5 dB at 8 GHz
- Isolation: -70 dB at 100 MHz, -23 dB at 5 GHz, -18 dB at 8 GHz
- Return Loss: 21 dB at 2.5 GHz, 18 dB at 5 GHz, 15 dB at 8 GHz
- Bandwidth: Typical 17 GHz
- Differential Input Voltage: <1.6 V
- Power Consumption: 200 μA active mode typically, 3 μA power-saving mode
- ESD: 2000 V HBM, 1000 V CDM
- Operating Temperature: -10°C to +85°C
- Control Inputs: CMOS SEL and XSD pins
- Features: Low crosstalk, high speed, support for differential signals, front-end protection, rail-to-rail input support
