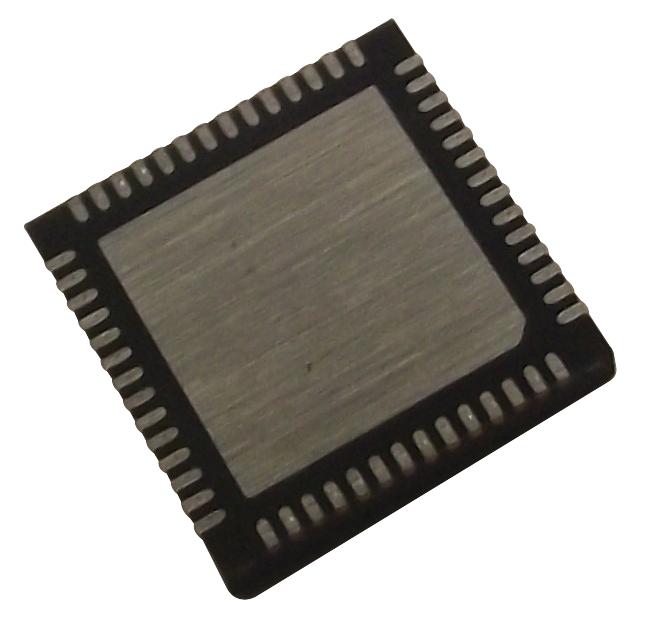

NXP PTN3460IBSF2MP DisplayPort to LVDS Bridge
The PTN3460I is an embedded DisplayPort to LVDS bridge device designed for industrial and embedded applications. It processes DP streams, performs protocol conversion, and transmits LVDS video signals supporting high-speed DP rates up to 2.7 Gbit/s. The device features integrated microcontroller, firmware update capability, EDID emulation, panel control, and flexible power options, operating reliably across -40°C to +85°C in HVQFN56 packages. It supports multi-lane DP, dual or single LVDS signaling, and various configuration modes for enhanced system integration.
NXP PTN3460IBSF2MP DisplayPort to LVDS Bridge Specifications:
- Operating temperature: -40°C to +85°C
- Package: HVQFN56, 7 mm x 7 mm, 0.4 mm pitch
- DP link rate: 1.62 Gbit/s or 2.7 Gbit/s (HBR and RBR)
- Supports 1-lane and 2-lane DP operation
- Supports single/dual bus LVDS signaling
- Color depth: 18/24 bits per pixel
- Pixel clock: up to 112 MHz
- EDID ROM emulation: up to 896 bytes (7 data structures)
- Power supply options: 3.3 V, or 3.3 V/1.8 V dual supply
- Supports DP AUX, I2C-over-AUX, and firmware updates
- Integrated microcontroller, non-volatile memory, reset circuitry
- Supports panel control signals and power sequencing
- Compliance: VESA DP v1.2a, eDP v1.2, and DisplayPort standards
- Termination resistors: 50 Ω on DP lanes and AUX
- Reflow soldering compatible; HVQFN56 package
Buy the NXP PTN3460I – Reliable DisplayPort to LVDS Converter for Industrial Applications
Enhance your industrial and embedded display systems with the PTN3460I, an advanced DisplayPort to LVDS bridge featuring high-speed conversion, EDID emulation, flexible power options, and broad temperature operation. Its compact HVQFN56 package ensures easy integration into space-constrained designs. Support for 1- or 2-lane DP, 18/24-bit color, and multiple configuration modes make it ideal for applications like industrial PCs, automotive dashboards, and notebook platforms. Upgrade your display technology with this robust, firmware-upgradable solution today.
Buy NXP PTN3460I now and experience unmatched reliability and performance in industrial display solutions.
