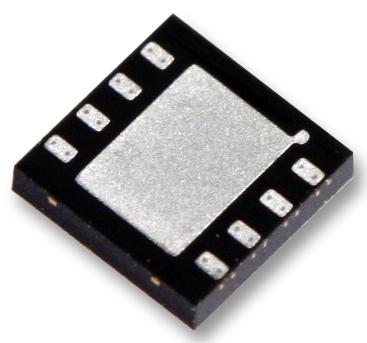

NXP SA56004ATK118 Temperature Sensor
The SA56004X is an SMBus-compatible, 11-bit remote/local digital temperature sensor with overtemperature alarms, capable of monitoring diode junctions such as microprocessor substrate PNPs or connected transistors like 2N3904/2N3906. It offers factory trimming for ±1 °C accuracy, programmable threshold alarms (overtemperature, undertemperature, critical temperature), and a configurable alert output that can serve as system interrupt or warning trigger. The sensor features local temperature sensing within ±2 °C, operating from -40 °C to +125 °C, and employs SMBus 2.0 with a 3.0V to 3.6V power range, supporting multiple device addresses and programmable conversion rates for precise thermal management applications.
NXP SA56004ATK118 Temperature Sensor Specifications:
- Sensor type: SMBus-compatible digital temperature sensor
- Resolution: 11-bit, 0.125 °C
- Remote temperature sensing accuracy: ±1 °C
- Local temperature accuracy: ±2 °C
- Temperature range: -40 °C to +125 °C
- Power supply voltage: 3.0 V to 3.6 V
- Programmable conversion rate: 0.0625 Hz to 26 Hz
- Alarm outputs: ALERT and T_CRIT, active LOW, open-drain
- Package options: SO8, TSSOP8, HVSON8
- Device addresses: 8 factory-programmed options
- Integrated SMBus 2.0 support, supports SMBus time-out protocol
- Detection capability: Overtemperature, undertemperature, diode faults
- Programming: Threshold thresholds, hysteresis, offset adjustments
Buy the NXP SA56004X – Reliable Temperature Sensor for Industrial Applications
Purchase the NXP SA56004X digital temperature sensor online today and ensure reliable thermal management for your electronic devices. With programmable thresholds, SMBus compatibility, and accurate remote temperature monitoring, this sensor is ideal for applications in laptops, servers, industrial equipment, and HVAC systems. Designed for easy integration, it offers local and remote sensing, overtemperature alarms, and various package options to fit your needs. Secure your electronic systems' thermal safety and efficiency with this durable, factory-trimmed sensor. Order now for fast shipping and expert support.
Get NXP SA56004X today—built for precise temperature monitoring and long-lasting durability in electronic systems.
Frequently Asked Questions
Where can I buy NXP SA56004ATK118?
You can click on the BUY or RFQ button to purchase SA56004ATK118 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part SA56004ATK118?
You can download the SA56004ATK118 datasheet or visit the NXP website for support.
Who is the manufacturer of SA56004ATK118?
NXP
