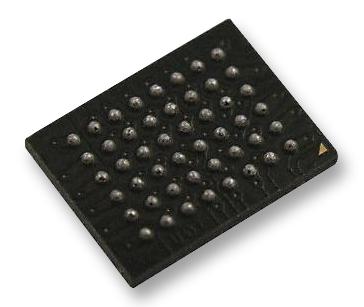

NXP CBTL06DP213EE118 DisplayPort Multiplexer
CBTLO6DP213 is a third-generation high-performance DisplayPort multiplexer designed for DP v1.3 applications. It supports data rates up to 8.1 Gbit/s across four differential channels, enabling 1:2 switch or 2:1 multiplexing configurations. The device offers bidirectional high-bandwidth pass-gate technology, incorporating multiplexing of auxiliary, DDC, and Hot Plug Detect signals, providing versatile connection options on motherboards, docking stations, and notebooks. Its compact 48-ball TFBGA package ensures efficient integration in space-constrained systems. Suitable for applications requiring flexible, high-speed DisplayPort switching and multiplexing.
NXP CBTL06DP213EE118 DisplayPort Multiplexer Specifications:
- Supports DP v1.3 with data rates of 1.62 Gbit/s, 2.7 Gbit/s, 5.4 Gbit/s, and 8.1 Gbit/s
- Four high-speed differential channels with 2:1 multiplexing
- Additional auxiliary and DDC channels with 4:1 multiplexing
- Supports Hot Plug Detect signals with 2:1 switching
- Driven by high-bandwidth pass-gate technology
- Switch control via CMOS logic signals GPU_SEL and DDC_AUX_SEL
- Low insertion loss: -0.9 dB at 100 MHz, -1.3 dB at 2.7 GHz, -1.7 dB at 4 GHz
- Low crosstalk: -35 dB at 2.7 GHz
- Power supply: 3.3 V
- Typical operating current: 2 mA
- ESD tolerance: 2 kV HBM
- Package: 48-ball TFBGA (SOT918-1), 5 x 5 x 0.8 mm
Buy the NXP Series DisplayPort Multiplexer: CBTLO6DP213
Discover the high-performance DisplayPort multiplexer designed for DP v1.3 systems. Support for data rates up to 8.1 Gbit/s, 4 differential channels, and multiplexing of auxiliary, DDC, and HPD signals makes it ideal for motherboards, docking stations, and notebooks. Its compact 48-ball TFBGA package ensures space-efficient integration. The device features low insertion loss, low crosstalk, and high reliability, with CMOS control inputs for easy switching. Order the CBTLO6DP213 today for superior DisplayPort management in your next project.
Get NXP CBTLO6DP213 today—built for high-speed, flexible DisplayPort switching with robust 3.3 V operation and compact TFBGA package.
