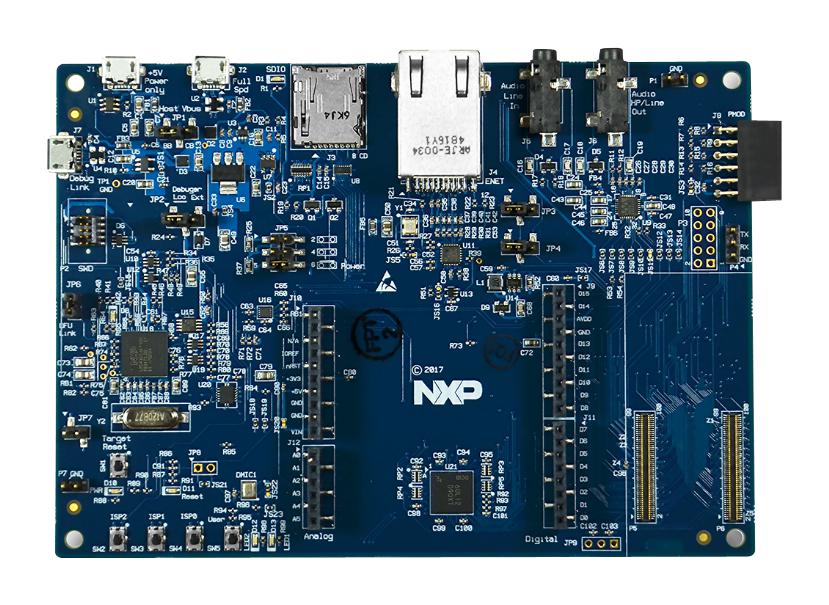

NXP OM40006UL IoT Module Base Board
The OM40006UL IoT Module Base Board offers a versatile platform for rapid prototyping and evaluation of NXP's LPC54018 microcontroller modules. Equipped with onboard peripherals like SDRAM, USB, LCD touchscreen, stereo audio codec, digital microphone, Ethernet, micro SD, and Arduino expansion, it supports multiple development environments including MCUXpresso, IAR, and Keil. Features include high-speed USB Debug probe, UART/SPI bridging, target reset, user buttons, LEDs, and external power options. Ideal for developing IoT applications with advanced peripherals and easy integration for connected projects.
NXP OM40006UL IoT Module Base Board Specifications:
- On-board high-speed USB Link2 debug probe with CMSIS-DAP and SEGGER J-Link protocols
- UART and SPI port bridging via USB
- External debug probe support
- 2x user LEDs and 3 user/reset buttons
- Arduino UNO compatible expansion site
- On-board 3.3V regulator with external power options
- 128Mb SDRAM from Winbond
- Digital microphone Knowles SPH0641LM4H
- Micro SD card slot for data storage
- NXP MMA8652FCR1 accelerometer for motion sensing
- Stereo audio codec with line in/out
- Full/High speed USB port with micro A/B connector
- 10/100Mbps Ethernet RJ45 port
- 272x480 color LCD with capacitive touchscreen
- Supported on LPC540XxX microcontroller series based on ARM Cortex-M4
Buy the Buy NXP IoT Module Base Board Part Number OM40006UL Online
Purchase the NXP IoT Module Base Board OM40006UL online to accelerate your IoT development projects. This versatile platform includes extensive peripherals like SDRAM, USB interface, LCD touchscreen, Ethernet, audio codec, micro SD, and Arduino expansion. Compatible with popular IDEs like MCUXpresso, IAR, and Keil, it allows seamless integration for prototyping and evaluation. Whether developing connected devices or sensor systems, this board provides a reliable and feature-rich environment to bring your IoT ideas to life quickly and efficiently.
Get NXP IoT Module Base Board OM40006UL today—optimized for fast prototyping with Touchscreen, Ethernet, and Audio peripherals.
Frequently Asked Questions
Where can I buy NXP OM40006UL?
You can click on the BUY or RFQ button to purchase OM40006UL from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part OM40006UL?
You can download the OM40006UL datasheet or visit the NXP website for support.
Who is the manufacturer of OM40006UL?
NXP
