NXP CBTV24DD12ETY Memory Bus Switch
The CBTV24DD12 is a 12-bit bus switch and multiplexer designed for high-speed DDR4, DDR3, and DDR2 memory systems, supporting up to 3200 MT/s. It features a 1:2 switch topology, bidirectional low-impedance pass-gate technology, and supports Vcc of 1.8 V, 2.5 V, or 3.3 V. The device offers low insertion and return loss, high OFF isolation, and low crosstalk, making it suitable for high-bandwidth applications like memory bus systems, NVDIMM modules, and flash memory subsystems. It is available in a compact TFBGA48 package, operating from -10°C to +85°C.
NXP CBTV24DD12ETY Memory Bus Switch Specifications:
- Supply Voltage: 1.8 V, 2.5 V, 3.3 V
- Bus Width: 12-bit
- Topology: 1:2 switch/multiplexer
- Speed: Up to 3200 MT/s
- Bandwidth: 7.4 GHz
- Operation Temperature: -10°C to +85°C
- Vcc: 1.8 V/2.5 V/3.3 V mixed operation
- Crosstalk Attenuation: -24 dB at 4 GHz
- Insertion Loss: 1.5 dB at 0-4 GHz, -3 dB at 7 GHz
- ESD Robustness: exceeds 2.5 kV HBM, 1 kV CDM
- Package: TFBGA48, 3.0 mm x 8.0 mm x 1 mm, 0.65 mm pitch
- Current Consumption: Typical 600 nA at supply conditions
- Low ON Resistance: Typical 6.5 Ω

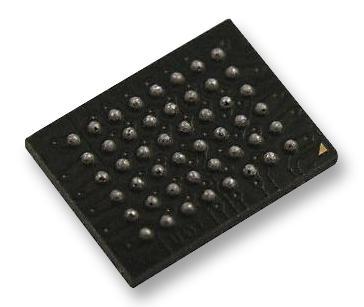

Buy the Buy NXP CBTV24DD12 Part Number CBTV24DD12ETY Online
Experience the highest performance with NXP's CBTV24DD12 memory bus switch, supporting DDR4, DDR3, DDR2 systems up to 3200 MT/s. Designed for high bandwidth, low loss, and excellent isolation, this device is perfect for advanced memory modules, high-speed multiplexing, and flash subsystems. Its compact TFBGA48 package facilitates dense PCB designs, while its robust construction ensures dependable operation over a wide temperature range. Purchase this versatile switch today for efficient memory system integration and enhanced data integrity in your electronic applications.
Get NXP CBTV24DD12TY today—built for high-speed DDR memory switching and reliable data multiplexing in dense PCB layouts.
Frequently Asked Questions
Where can I buy NXP CBTV24DD12ETY?
You can click on the BUY or RFQ button to purchase CBTV24DD12ETY from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part CBTV24DD12ETY?
You can download the CBTV24DD12ETY datasheet or visit the NXP website for support.
Who is the manufacturer of CBTV24DD12ETY?
NXP
