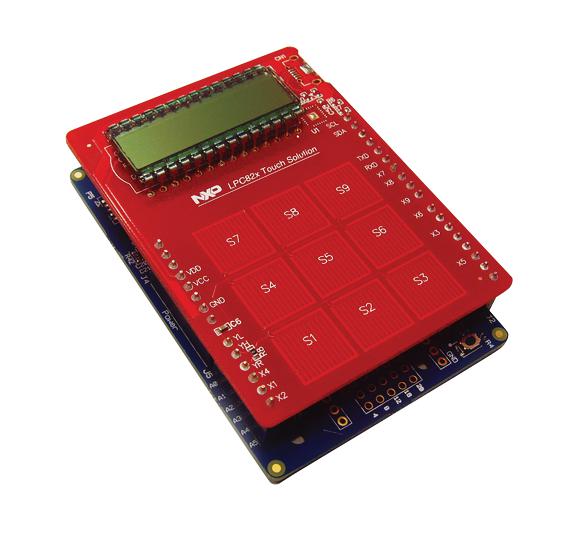

NXP OM13081UL Capacitive Touch Interface Module
The LPC82x Touch solution kit is an integrated hardware and software platform designed for capacitive touch interface applications. It features an LPC824 microcontroller with support for touchpad and keypad modes, visualized through an on-board LCD and a Windows GUI for data analysis. The kit includes the LPCXpresso824-MAX board, an Arduino-compatible LPC82x Touch shield with a 3x3 matrix touch sensor, and supports programming via USB drag-and-drop. It enables precise touch detection, mode switching, and easy configuration for touch-based user interface designs, suitable for advanced embedded systems and prototypes.
NXP OM13081UL Capacitive Touch Interface Module Specifications:
- Microcontroller: LPC824 in HVQFN33 package
- Supported Modes: Touchpad (8-bit resolution), 9 Keys (Key Mode), 1D and 2D modes
- Touch Sensor: 3x3 matrix capacitive sensors
- Display: On-board character LCD for Touch positions and status
- Power Supply: USB powered
- Communication: USB-serial interface with COM port configuration, baud rate 9600
- Programming: USB drag-and-drop with mbed mass storage device mode
- USB Interface: Supports CMSIS-DAP debug
- Expansion: Arduino UNO R3 connectors, Mbed/LPCXpresso, Pmod options
- Supported Development Environments: LPCXpresso IDE, mbed, third-party tools
- Additional: RGB debug LED, 10-pin SWD connector, UART ISP capability
- Operating Environment: Windows GUI for visualization, analysis, configuration
- Hardware Compatibility: LPCXpresso824-MAX board, LPC82x Touch shield
- Features: Gesture detection, configuration parameter handling, touch data visualization
Buy the NXP Series LPC82x Capacitive Touch: OM13081UL
Order the NXP LPC82x Capacitive Touch Module OM13081UL online today. This comprehensive kit includes a microcontroller, touch shield, LCD display, and a Windows GUI for real-time visualization, analysis, and configuration of touch data. Designed for seamless integration with development environments like LPCXpresso and mbed, it offers precise touch detection and multiple modes for versatile applications. Perfect for embedded system prototypes, user interface designs, and touch-based control systems, ensuring fast setup and reliable operation.
Get NXP LPC82x OM13081UL today—built for precision, easy configuration, and reliable touch interface performance.
Frequently Asked Questions
Where can I buy NXP OM13081UL?
You can click on the BUY or RFQ button to purchase OM13081UL from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part OM13081UL?
You can download the OM13081UL datasheet or visit the NXP website for support.
Who is the manufacturer of OM13081UL?
NXP
