NXP CLEV6630BM NFC Development Kit

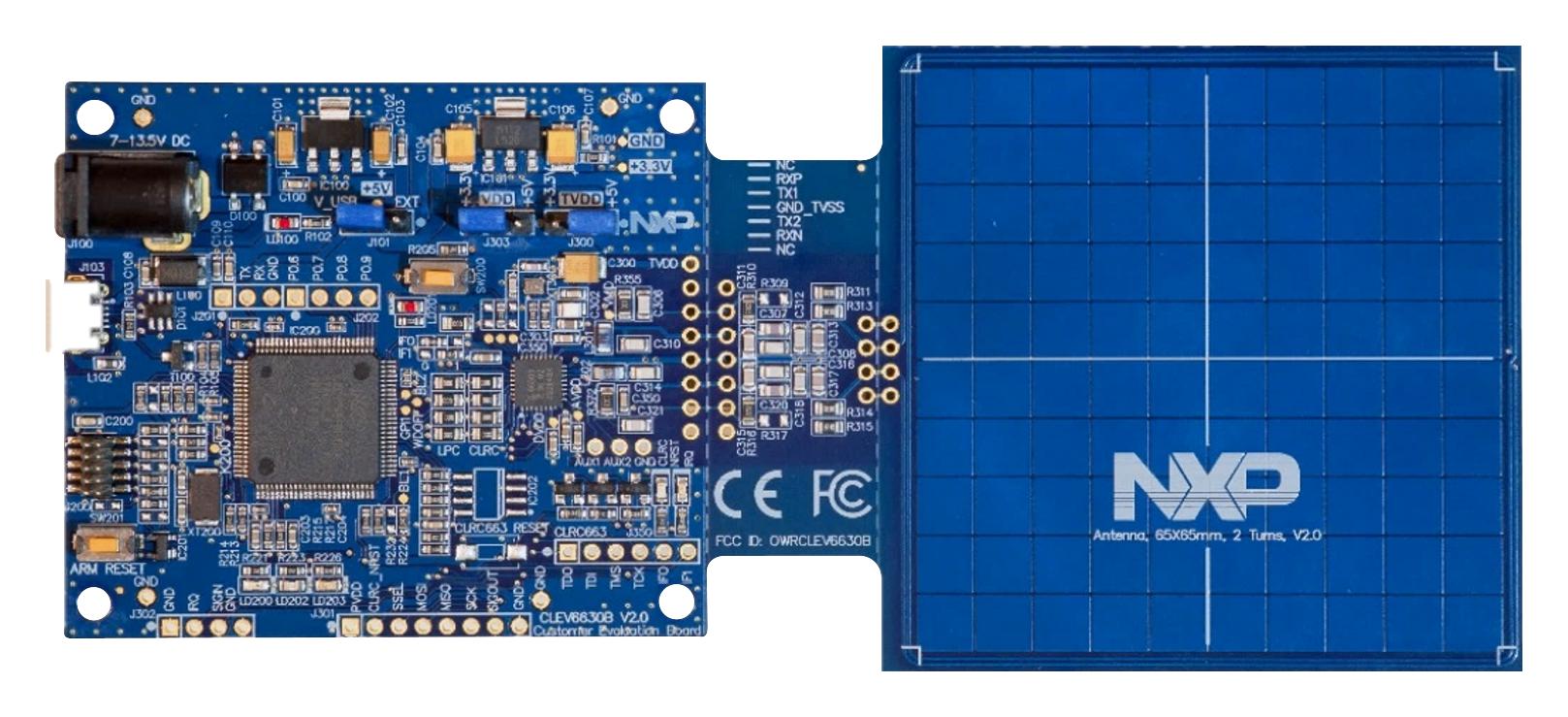

The CLEV6630BM is a versatile front-end development kit for the CLRC663 plus NFC reader. It includes a fully supported CLEV6630B board compatible with NFC Cockpit and NFC Reader Library, featuring two antennas: a 65x65 mm antenna optimized for EMVCo applications and a 30x50 mm antenna suited for access management. The kit also provides three small antennas with matching PCBs for custom antenna matching circuits, NFC sample cards based on NTAG216 (NFC Forum Type 2 tag) and MIFARE DESFire EV2®, as well as ten CLRC663 plus samples in HVQFN packages. Key features include high RF performance, low power card detection, compliance with relevant NFC standards and EMVCo 2.6, and an onboard LPC1769 MCU with SPI interface for additional MCU connections. The kit is designed for easy integration and testing of contactless NFC applications.
NXP CLEV6630BM NFC Development Kit Specifications:
- Operating Voltage: 2.5 to 5.5V
- Antenna Size: 65x65 mm and 30x50 mm
- Sample Cards: NTAG216F and MIFARE DESFire EV2
- Sample Count: 10 CLRC663 plus samples in HVQFN packages
- Microcontroller: onboard LPC1769 with SPI interface
- Standards Supported: NFC Forum, EMVCo 2.6, ISO/IEC 14443, ISO/IEC 15693
- Maximum Transmitter Current: 350mA (limiting 500mA)
- Temperature Range: -40°C to +105°C
- Power Supply: 2.5V to 5.5V
- High RF Performance and Low Power Card Detection
- Compatible with NFC Cockpit and NFC Reader Library
- Includes matching PCBs for custom antenna implementation
- Overall Dimensions: Kit designed for easy integration and testing
Buy the Buy NXP CLRC663 plus Part Number CLEV6630BM Online
Purchase the NXP NFC Development Kit featuring CLRC663 plus CLEV6630BM today. This comprehensive kit includes dual antennas, NFC sample cards, and an easy-to-use platform supported by NFC Cockpit and Reader Library, enabling rapid development, testing, and deployment of contactless NFC solutions. Ideal for engineers and developers, it offers high RF performance, low power card detection, and industry-standard compliance, ensuring seamless integration for various NFC applications such as EMVCo, access control, and contactless payments. Get assembly support and flexible options for a faster time-to-market.
Buy NXP CLRC663 plus CLEV6630BM now and experience unmatched reliability and performance in contactless NFC applications.
Frequently Asked Questions
Where can I buy NXP CLEV6630BM?
You can click on the BUY or RFQ button to purchase CLEV6630BM from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part CLEV6630BM?
You can download the CLEV6630BM datasheet or visit the NXP website for support.
Who is the manufacturer of CLEV6630BM?
NXP
