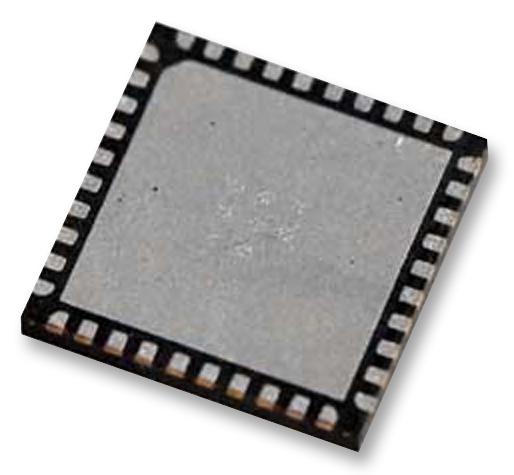

NXP PN5120A0HNC2551 NFC Frontend
The PN512 is a highly integrated NFC frontend supporting contactless communication at 13.56 MHz. It supports multiple modes including Reader/Writer, Card Operation, and NFCIP-1, compatible with ISO/IEC 14443A/B, FeliCa, and NFC standards. Designed for robust contactless interactions, it provides flexible host interfaces such as SPI, UART, I2C, and parallel, with internal features like CRC coprocessor, FIFO buffer, RF level detection, and self-test. Available in various packages, its operational distance varies with antenna tuning, making it suitable for industrial automation, access control, and smart card applications.
NXP PN5120A0HNC2551 NFC Frontend Specifications:
- Operating frequency: 13.56 MHz
- Supported protocols: ISO/IEC 14443A, 14443B, FeliCa, NFCIP-1
- Transfer speeds: up to 424 kbit/s (NFCIP-1, FeliCa), 106 kbit/s (ISO/IEC 14443A/B)
- Power supply: 2.5V to 3.6V
- Communication interfaces: SPI, UART, I2C, parallel (supported in specific packages)
- FIFO buffer: 64 bytes
- RF detection: integrated RF level detector, adjustable sensitivity
- Supported packages: HVQFN32, HVQFN40, TFBGA64
- Operating distance: up to 50mm in Read/Write mode depending on antenna tuning
- Additional features: CRC coprocessor, internal self-test, programmable timer, multiple power modes
- Package dimensions: HVQFN32 (5x5x0.85mm), HVQFN40 (6x6x0.85mm), TFBGA64 (6x6mm with 64 balls)
- Device version: v.1.0 and v.2.0 (industrial version), with version identification via VersionReg
- Environmental conditions: -30°C to +85°C (standard), -40°C to +90°C (industrial version)
- Compliance: NFC Forum, ISO/IEC, FeliCa standards; automotive qualification for industrial version
- Sensor performance depends on antenna tuning and external circuit design
Buy the NXP PN512 - Reliable NFC Frontend for Industrial Applications
Purchase the NXP PN512 NFC frontend today for robust contactless communication solutions. Its support for ISO/IEC 14443, FeliCa, and NFCIP-1 standards, combined with multiple interface options and integrated features like CRC, FIFO, RF detection, and self-test, make it ideal for industrial automation, access control, and smart card systems. With various package options and extensive testing, the PN512 ensures high performance, durability, and compliance, ready to enhance your contactless application setup quickly and reliably.
Buy NXP PN512 now and experience unmatched reliability and flexible contactless communication in industrial environments.
Frequently Asked Questions
Where can I buy NXP PN5120A0HNC2551?
You can click on the BUY or RFQ button to purchase PN5120A0HNC2551 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part PN5120A0HNC2551?
You can download the PN5120A0HNC2551 datasheet or visit the NXP website for support.
Who is the manufacturer of PN5120A0HNC2551?
NXP
