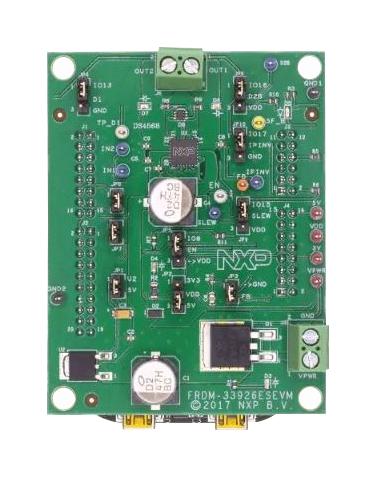

NXP FRDM33926ESEVM Motor Control Evaluation Board
The evaluation board is designed for testing the MC33926 high-current H-bridge IC, supporting voltages from 5.0 V to 28 V, with various status LEDs and flexible jumper configurations. It allows users to evaluate motor control functions, including forward/reverse operations, recirculation modes, and fault detection, either standalone or with an NXP FRDM-KL25Z platform. The board includes power regulation, reverse battery protection, signal probing test points, and an intuitive GUI interface for comprehensive control and analysis of brushed DC motors in research and development settings.
NXP FRDM33926ESEVM Motor Control Evaluation Board Specifications:
- Power Supply Voltage Range: 5.0 V to 28 V, transient 5.0 V to 40 V
- Maximum Load Current: 5.0 A
- Built-in 5.0 V voltage regulator
- Device: MC33926ES monolithic H-bridge IC with thermal and short-circuit protection
- Package: 28-pin QFN-EP
- Thermal management includes PWM foldback at <165°C, thermal foldback at 165-185°C, shutdown at >175°C
- LED Indicators: power status, fault, direction (forward/reverse), current flow
- Status flag output (SFB): active low open-drain
- Inputs include D1, EN, IN1, IN2, SLEW, IPINV, D2B
- Test points provided for signals like GND, VPWR, FB, and control signals
- Compatible with NXP’s Freedom Development Platform and contains jumper configurations for various modes
- Supports both stand-alone control via external logic signals and GUI-based motor control
Buy the Buy NXP MC33926ES Evaluation Board Part Number FRDM33926ESEVM Online
Enhance your motor control development with the NXP MC33926ES Evaluation Board. Designed for versatile testing from 5 to 28 V, this board offers built-in protection, accurate load monitoring, and comprehensive signal access. Its compatibility with NXP’s Freedom platform makes it ideal for R&D and prototyping. Easy to connect and control via GUI or external signals, it supports efficient evaluation of motor operations in various modes, ensuring precise, safe, and reliable testing for engineers and researchers alike.
Order your NXP MC33926ES Evaluation Board and unleash reliable motor control capabilities today—perfect for R&D, prototyping, and advanced motor driver testing.
Frequently Asked Questions
Where can I buy NXP FRDM33926ESEVM?
You can click on the BUY or RFQ button to purchase FRDM33926ESEVM from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part FRDM33926ESEVM?
You can download the FRDM33926ESEVM datasheet or visit the NXP website for support.
Who is the manufacturer of FRDM33926ESEVM?
NXP
