NXP PCF8574AT3518 I/O Expander
The PCF8574AT3518 is a remote 8-bit I/O expander utilizing the I2C-bus interface, supporting 100 kHz standard mode with low power consumption of 2.5 μA. It features eight quasi-bidirectional ports that default to inputs on power-up, capable of being assigned as inputs or outputs for driving LEDs, indicators, or monitoring signals. Its open-drain interrupt output alerts the system to I/O changes, optimizing microcontroller polling. The device operates between 2.5 V and 6 V, supports up to 128 I/Os with multiple units on the bus, and is suitable for industrial, medical, and consumer applications requiring reliable remote I/O expansion.
NXP PCF8574AT3518 I/O Expander Specifications:
- Interface: I2C-bus, Standard-mode 100 kHz
- Supply voltage range: 2.5 V to 6 V
- Quasi-bidirectional I/O ports: 8, default inputs at power-up
- Current consumption: 2.5 μA (typical, static)
- Interrupt output: Active LOW open-drain
- Port drive capability: minimal sink current 80 mA total, individual pins 10 mA
- Supports up to 16 devices on bus, supporting up to 128 total I/O lines
- Operating temperature: -40°C to +85°C
- ESD protection: >2000 V HBM, >1000 V CDM
- Package options: DIP16, SO16, SSOP20

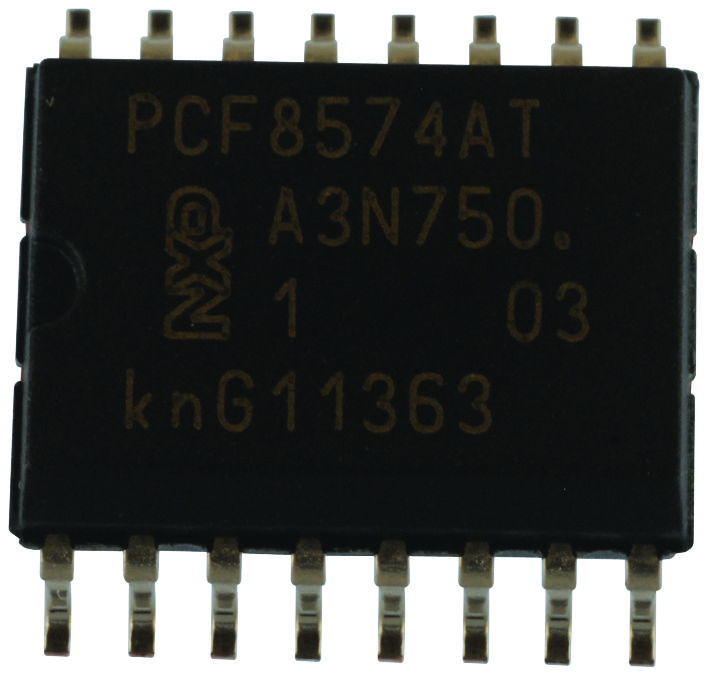

Buy the NXP Series PCF8574 I/O Expander: PCF8574AT3518
Order the NXP PCF8574AT3518 online today and enhance your system with reliable remote 8-bit I/O expansion. This device offers free-standing operation, low power draw, and an interrupt feature to optimize microcontroller utilization. Perfect for industrial control, medical equipment, LED displays, and consumer electronics, the device supports multiple units on the same bus, supports operation from 2.5V to 6V, and ensures high performance with minimal power consumption. Secure your stock now for seamless system integration and increased efficiency.
Buy NXP PCF8574AT3518 now and experience unmatched reliability and performance in remote I/O expansion with low power consumption and high integration.
Frequently Asked Questions
Where can I buy NXP PCF8574AT3518?
You can click on the BUY or RFQ button to purchase PCF8574AT3518 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part PCF8574AT3518?
You can download the PCF8574AT3518 datasheet or visit the NXP website for support.
Who is the manufacturer of PCF8574AT3518?
NXP
