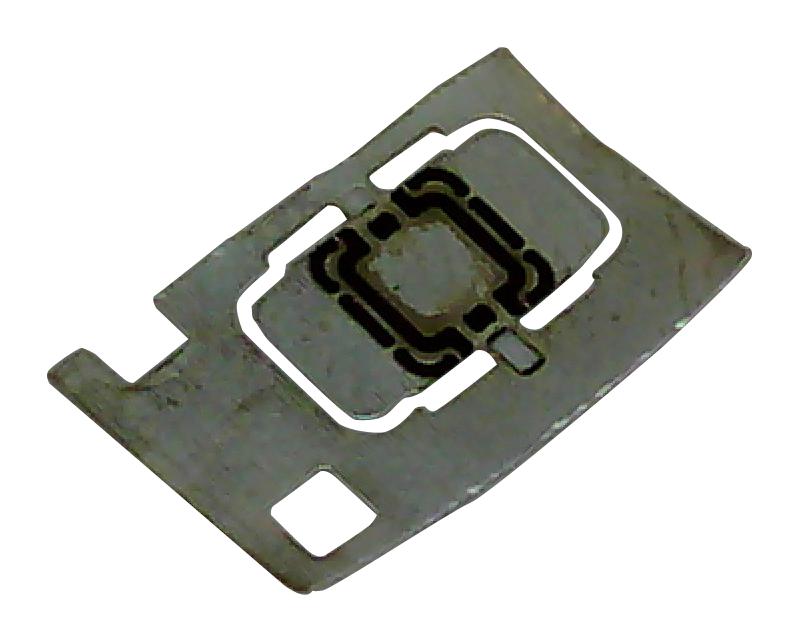

NXP MF3MOD8101DA8051 Contactless Multi-Application IC
The MIFARE DESFire EV1 contactless multi-application IC is a highly secure NFC chip designed for public transportation, access control, e-payment, and event ticketing. It supports multiple applications, rich security features including hardware AES and DES encryption, mutual authentication, and advanced anti-collision technology. With flexible memory organization, up to 28 applications and 32 files per application, it offers fast data transfer rates up to 848 kbit/s. Its open standards compliance ensures seamless integration with existing infrastructure, making it ideal for secure, scalable contactless solutions worldwide.
NXP MF3MOD8101DA8051 Contactless Multi-Application IC Specifications:
- RF interface: ISO/IEC 14443 Type A
- Operating frequency: 13.56 MHz
- Data transfer rates: up to 848 kbit/s
- Memory options: 2 kB, 4kB, 8 kB NV memory
- Memory organization: Up to 28 applications, 32 files each
- File types: Standard, backup, value, linear record, cyclic record
- Security: Hardware AES and DES encryption, mutual authentication, unique 7-byte UID
- Battery not required; energy via RF field
- Operating distance: up to 100 mm
- Memory retention: 10 years
- Write endurance: 500,000 cycles
- Operating temperature: -25°C to 70°C
- Storage temperature: -55°C to +125°C
- Certifications: Common Criteria EAL4+
- Compatibility: ISO/IEC 14443-4, ISO/IEC 7816
Buy the NXP MIFARE DESFire EV1 – Reliable Contactless Multi-Application IC for Industrial Applications
Enhance your contactless system with the NXP MIFARE DESFire EV1. This high-security NFC chip supports multiple applications, offers fast data transfer up to 848 kbit/s, and features advanced encryption such as hardware AES and DES. Its flexible memory structure enables up to 28 applications with 32 files each, making it ideal for transport, access control, and e-payment schemes. With proven reliability, secure mutual authentication, and ISO compliance, you can seamlessly upgrade your contactless needs and ensure data integrity in demanding environments.
Buy NXP MIFARE DESFire EV1 now and experience unmatched security, flexible memory, and high-speed contactless data transfer for scalable solutions.
Frequently Asked Questions
Where can I buy NXP MF3MOD8101DA8051?
You can click on the BUY or RFQ button to purchase MF3MOD8101DA8051 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MF3MOD8101DA8051?
You can download the MF3MOD8101DA8051 datasheet or visit the NXP website for support.
Who is the manufacturer of MF3MOD8101DA8051?
NXP
