NXP FRDMMCLVPMSM Motor Control Development Board
The FRDM-MC-LVPMSM is a versatile development platform for low-voltage, 3-phase PMSM control, ideal for rapid prototyping in motor control and embedded applications. Featuring a power supply range of 24VDC to 48VDC via a 5.5mm x 2.1mm barrel connector, it supports up to 5A RMS output current. The board includes a three-phase inverter with six MOSFETs, MOSFET gate drivers with overcurrent and undervoltage protection, and interfaces for motor sensors. Designed for easy integration, it offers reverse polarity protection, analogue sensing capabilities, and Arduino R3 compatibility, making it suitable for research, development, and automation projects involving efficient motor control solutions.
NXP FRDMMCLVPMSM Motor Control Development Board Specifications:
- Input Voltage Range: 24VDC to 48VDC via 5.5mm x 2.1mm barrel connector
- Maximum Output Current: up to 5A RMS
- Motor Control: 3-phase inverter with six MOSFETs, MOSFET gate drivers
- Protection: Overcurrent and undervoltage protection integrated
- Analog Sensing: DC bus voltage, DC bus current, 3-phase back-EMF voltage
- Power Supply: 5.5VDC auxiliary for microcontroller
- Compatibility: Arduino R3 headers
- Reverse Polarity: Protected
- Form Factor: Shield, compatible with existing development platforms
- Includes: Hardware and quick start guide for embedded development and motor control
- Applications: Motor control, automation, robotics, embedded systems

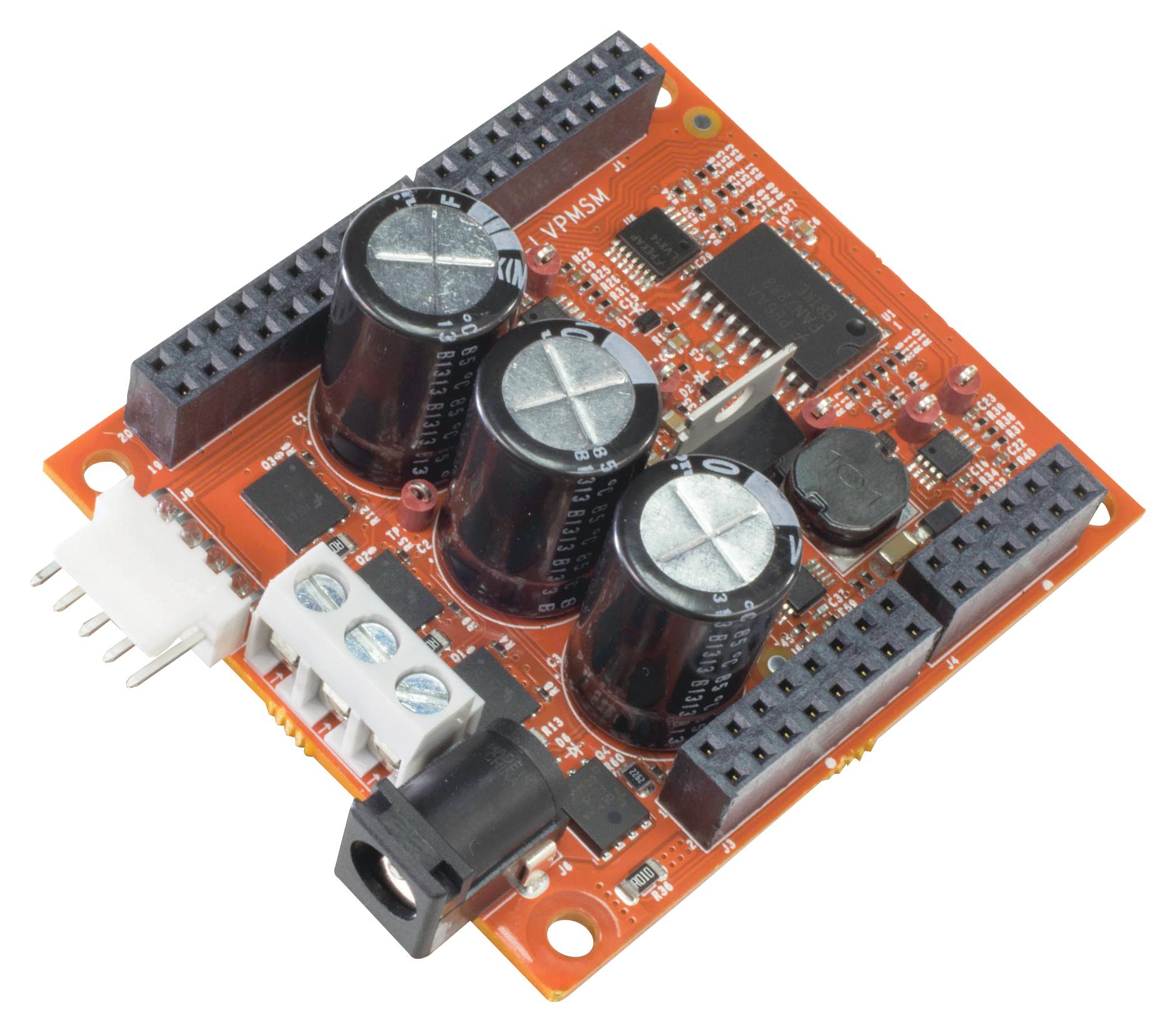

Buy the Buy Freescale FRDM-MC-LVPMSM Part Number FRDMMCLVPMSM Online
Enhance your embedded system projects with the Freescale FRDM-MC-LVPMSM development platform, specially designed for low-voltage, three-phase PMSM control. Easy to use with no jumper configurations, it supports 24-48V input and up to 5A RMS current, making it ideal for rapid testing and prototyping in motor control and automation applications. Equipped with a three-phase inverter, MOSFET drivers, protection features, and Arduino R3 compatibility, this platform accelerates development and ensures reliable performance in research and industrial environments.
Get Freescale FRDM-MC-LVPMSM today—designed for efficient low-voltage three-phase motor control and rapid prototyping in embedded systems.
Frequently Asked Questions
Where can I buy NXP FRDMMCLVPMSM?
You can click on the BUY or RFQ button to purchase FRDMMCLVPMSM from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part FRDMMCLVPMSM?
You can download the FRDMMCLVPMSM datasheet or visit the NXP website for support.
Who is the manufacturer of FRDMMCLVPMSM?
NXP
