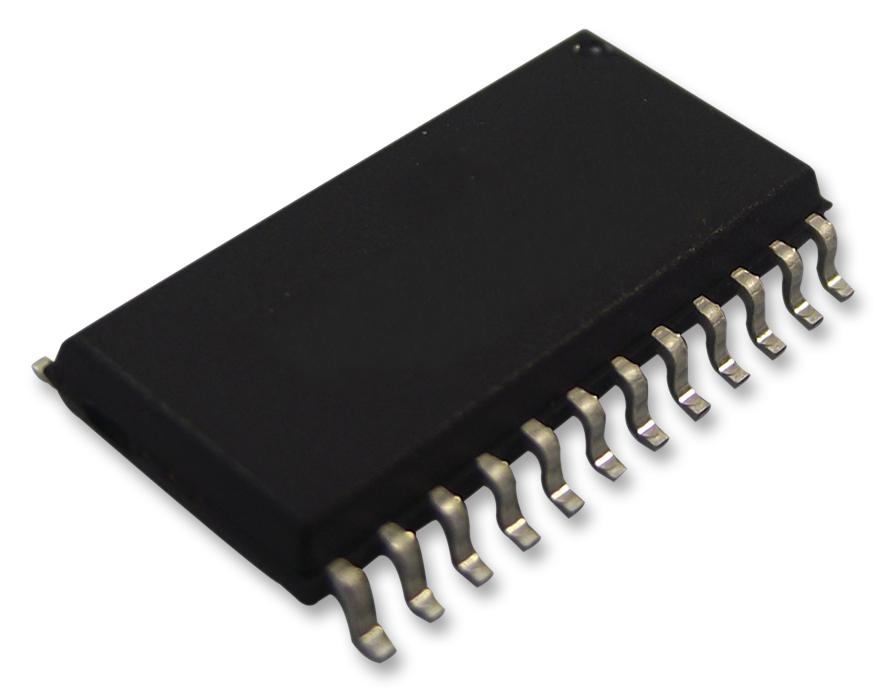

NXP PCA9552D118 LED Driver
The PCA9552 is a 16-bit I2C-bus LED driver with programmable blink rates, internal oscillator, and support for LED and GPIO control. It features two programmable blink rates from 0.172 Hz to 44 Hz, accommodates up to 25 mA sink current per LED, and operates within 2.3 V to 5.5 V. Its internal power-on reset, noise filters, and active LOW reset enhance reliability. The device supports hot insertion, has an exposed pad for thermal management, and includes multiple package options such as SO24, TSSOP24, HVQFN24. Its use is ideal for LED signaling, status indication, and device control in industrial and automation environments.
NXP PCA9552D118 LED Driver Specifications:
- Supply Voltage Range: 2.3 V to 5.5 V
- Maximum Sink Current per LED: 25 mA
- Maximum Total Power Dissipation: 400 mW
- Operating Temperature: -40°C to +85°C
- Blink Frequencies: 0.172 Hz to 44 Hz (programmable)
- Internal Oscillator: Yes, no external components needed
- Input Voltage: Vss to Vop (up to 5.5 V)
- Package Types: SO24, TSSOP24, HVQFN24
- Active LOW Reset Pin
- Supports Hot Plugging and Power-On Reset
- I2C-bus Clock Frequency: 0 Hz to 400 kHz
- Maximum SDA/SCL Input Voltage: 5.5 V
- ESD Protection: >2000 V HBM
- Latch-up Tested to JEDEC Standards
- Features 16 open-drain outputs for direct LED driving or GPIO expansion
- Includes noise filtering on SDA and SCL lines
- Pin configuration compatible with industry standards for surface-mount packages
- Designed for industrial, automation, and signaling applications
Buy the Philips PCA9552 – Reliable LED Driver for Industrial Applications
Order the Philips PCA9552 online today to enhance your industrial signaling and LED control systems. This driver supports programmable blink rates, supports GPIO expansion, and features internal oscillator for simplified design. It is suitable for industrial automation, device status indication, and lighting control in various applications. The device operates on a voltage range of 2.3 V to 5.5 V, ensuring compatibility with a wide array of systems. Easy to integrate with surface mount packages including SO24, TSSOP24, and HVQFN24, delivering reliable performance for demanding environments.
Get Philips PCA9552 today—built for precision LED signaling and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy NXP PCA9552D118?
You can click on the BUY or RFQ button to purchase PCA9552D118 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part PCA9552D118?
You can download the PCA9552D118 datasheet or visit the NXP website for support.
Who is the manufacturer of PCA9552D118?
NXP
