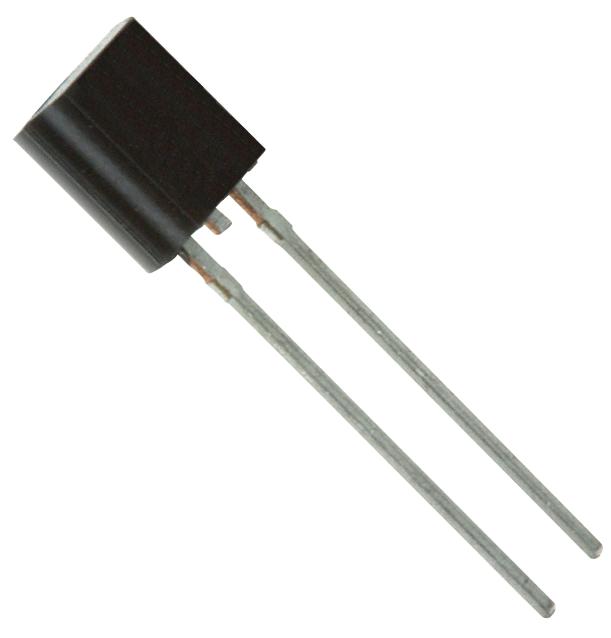

NXP KTY81221112 Silicon Temperature Sensor
The KTY81 series comprises silicon temperature sensors with a positive temperature coefficient and virtually linear characteristics, designed for precise measurement and control in industrial systems. Encapsulated in the SOD70 plastic package, these sensors offer high accuracy, long-term stability, and fail-safe behavior. Suitable for liquid and in-liquid environments, models like KTY81/220 and KTY81/222 provide resistance ranges between 1960 and 2040 Ohms at 25°C, with excellent temperature coefficients of around 0.79%/K. They are sensitive to ESD and require careful handling during transport and installation.
NXP KTY81221112 Silicon Temperature Sensor Specifications:
- Resistance at 25°C: 1960 - 2040 Ohms depending on model
- Temperature Coefficient: approximately 0.79%/K
- Maximum operating temperature: 150°C
- Ambient temperature range: -55°C to +150°C
- Sensor resistance tolerance: Min 950 Ohms, Max 2100 Ohms
- Thermal time constant: 30 seconds in still air; 5 seconds in still liquid
- Lead-to-lead distance spread leads: 5.08 mm
- Package: SOD70 encapsulated plastic, with in-line or cylindrical options
- Electrical current: recommended 1 mA for low temperature error
- ESD Sensitive: yes, handle with care
- Dimensions: Body width 44-48 mm, height 5-5.2 mm, thickness 36-42 mm
- Lead length varies; feed hole diameter 4 mm
Buy the NXP KTY81 Series – Reliable Silicon Temperature Sensors for Industrial Applications
Purchase NXP KTY81 silicon temperature sensors online today. Designed for accuracy, stability, and durability in industrial environments. Easy to install with encapsulated SOD70 package, these sensors deliver reliable temperature measurement with high resistance stability and linear behavior. Perfect for liquid measurement and control systems, they operate reliably across a broad temperature range. Secure your supply of high-quality silicon temperature sensors now and ensure optimal performance in your industrial applications.
Get NXP KTY81 series sensors today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy NXP KTY81221112?
You can click on the BUY or RFQ button to purchase KTY81221112 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part KTY81221112?
You can download the KTY81221112 datasheet or visit the NXP website for support.
Who is the manufacturer of KTY81221112?
NXP
