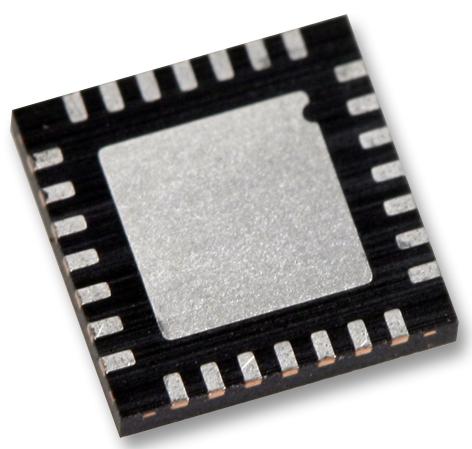

NXP MC33HB2000AES Motor Driver
The MC33HB2000 is a highly configurable, SPI-programmable H-bridge driver designed for automotive and industrial applications. It supports continuous load currents up to 3.0 A, peak currents over 10 A, and features diagnostic capabilities such as overtemperature, short circuit, open load, and undervoltage detection. Its advanced thermal management ensures reliable operation with an excellent thermal resistance of <1.0 °C/W. Available in SOIC, PQFN, and HVQFN packages, it is ideal for DC motor control, servo drives, and motorized actuators requiring precise load and fault diagnostics, overvoltage protection, and programmable slew rates for EMI reduction.
NXP MC33HB2000AES Motor Driver Specifications:
- Maximum supply voltage: 28 V
- Operating junction temperature: -40°C to 150°C
- Peak current: >10 A
- Continuous load current: 3.0 A
- Thermal resistance junction to case: <1.0 °C/W
- Thermal resistance junction to ambient: 23.9 °C/W (4-layer board)
- Input voltage for logic: -0.3 V to 36 V
- Output voltage range: -0.3 V to VPWR+2.0 V
- SPI interface frequency: up to 10 MHz
- Slew rate options: 0.25 V/us to >16 V/us programmable via SPI
- Diagnostic features: overtemperature, overvoltage, undervoltage, open load, short circuit
- Packages available: SOIC, PQFN, HVQFN
- Reverse battery protection: external diode or MOSFET recommended
- Overcurrent detection accuracy: better than 5%
- Logic supply voltage: 3.3 V to 5 V compatible
Buy the NXP MC33HB2000 AES – Reliable Motor Driver for Industrial Applications
Secure your industrial motor control solution by purchasing the NXP MC33HB2000AES online today. Its advanced diagnostics, programmability, and thermal efficiency ensure superior performance in automotive and industrial environments. With multiple package options, high peak current ratings, and configurable slew rates, this driver offers precise control and safety features essential for demanding applications. Order now and enjoy fast delivery, reliable operation, and peace of mind with a globally trusted component designed for excellence.
Buy NXP MC33HB2000AES now and experience unmatched reliability, integrated diagnostics, and flexible programmability for your industrial motor control needs.
Frequently Asked Questions
Where can I buy NXP MC33HB2000AES?
You can click on the BUY or RFQ button to purchase MC33HB2000AES from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MC33HB2000AES?
You can download the MC33HB2000AES datasheet or visit the NXP website for support.
Who is the manufacturer of MC33HB2000AES?
NXP
