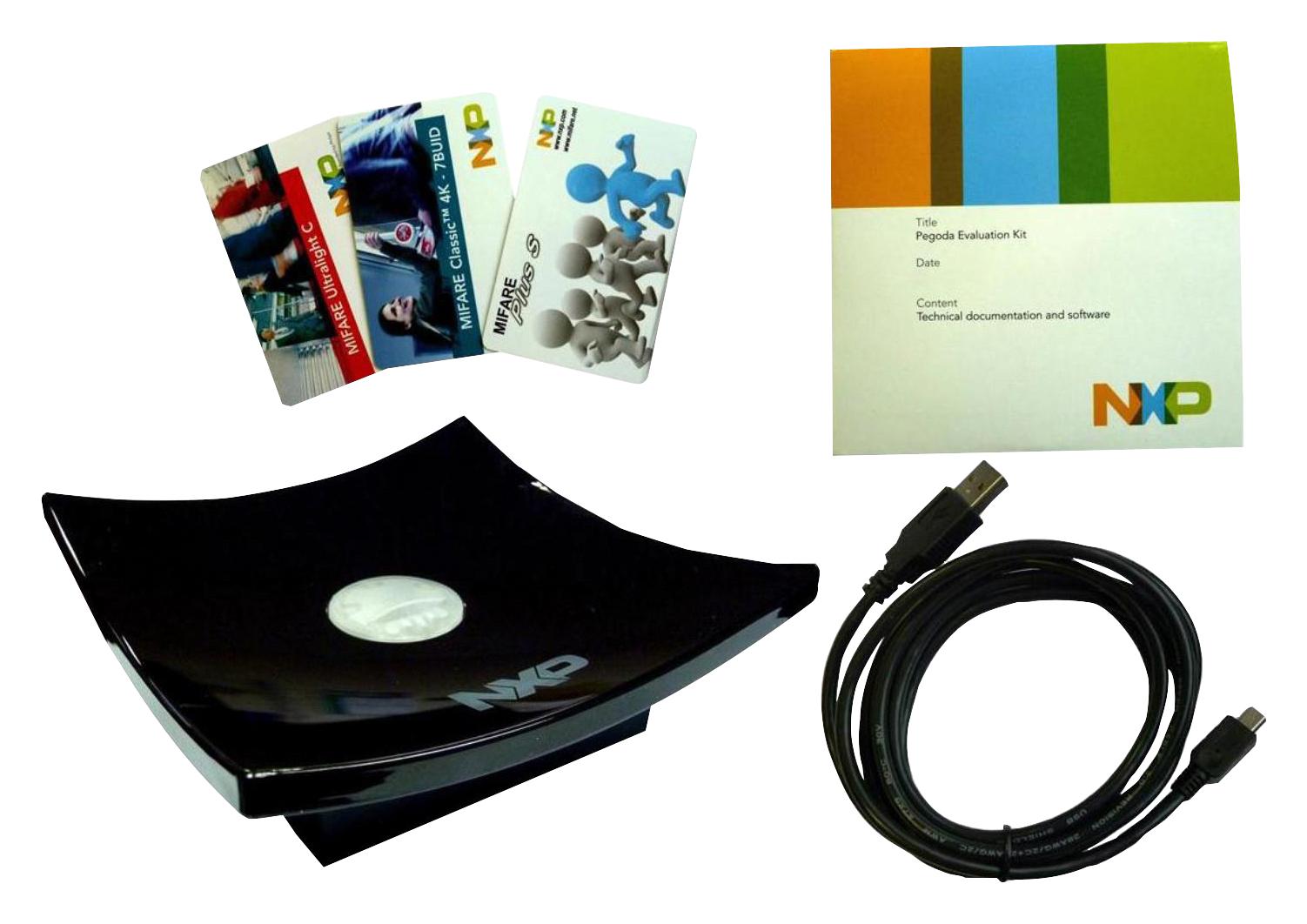

NXP MFEV710599 Contactless Smart Card Reader
The Pegoda MFEV710 is a contactless smart card reader designed for secure applications, supporting MIFARE® and NTAG® products. It features an ARM Cortex-M3 microcontroller with integrated flash memory, a USB host interface for connection to PCs with Windows-based user interfaces, and optional support for RS-232, RS485, JTAG, and Ethernet interfaces. The device offers full compatibility with the entire MIFARE product portfolio and MIFARE Discover, as well as support for SAM in standard or x-mode. It operates with multibprotocol support for ISO/IEC 14443 and MIFARE protocols and utilizes a PC/SC-based architecture on widely deployed hardware. Firmware is available in both source code and binary formats. Please note that market demand has extended lead times, and delivery dates may fluctuate. Discounts are not applicable to this product.
NXP MFEV710599 Contactless Smart Card Reader Specifications:
- Supply Voltage: 4.75 to 5.25 V
- Ambient Temperature: -10°C to +70°C
- Processor: ARM Cortex-M3 with integrated flash memory
- Communication Interfaces: USB host, optional RS232, RS485, Ethernet, JTAG
- Protocols Supported: ISO/IEC 14443, MIFARE, NTAG
- Data Rates: 106, 212, 424, 848 kBit/s
- Operating Modes: No SAM, SAM in X-Mode, SAM in S-Mode
- Firmware: Source code and binaries available
- Support for full MIFARE portfolio and MIFARE Discover
- Designed for secure access control and contactless applications
Buy the NXP Series Pegoda EV710: MFEV710 Secure Contactless Smart Card Reader
Securely develop contactless applications with our Pegoda EV710 smart card reader, supporting MIFARE and NTAG products. Equipped with an ARM Cortex-M3 microcontroller, USB host interface, and optional Ethernet, RS-232, RS485, and JTAG. Its multi-protocol support includes ISO/IEC 14443 and MIFARE, enabling reliable contactless data exchange. Firmware is available in source and binary formats, ensuring flexible customization for access management, public transportation, and PC peripherals. Lead times may extend due to market demand; place your order today to ensure reliable deployment.
Order your NXP Series Pegoda EV710 today and secure your contactless applications with a versatile, high-performance smart card reader.
