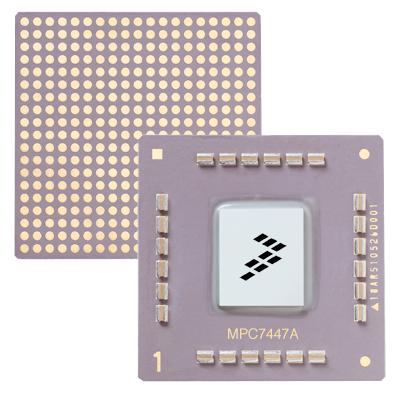

NXP MC7447ATHX1000NB PowerPC Microprocessor
The MC7447A is a high-performance, 0.13-m CMOS PowerPC microprocessor with a 7-stage pipeline, support for multiple execution units including vector and floating-point units, and advanced thermal management features such as a temperature diode and dynamic frequency switching. It features a 512-Kbyte on-chip L2 cache, four vector units, and extensive support for system-level thermal and power optimization. Designed for networking and computing applications, it operates within a wide voltage and temperature range, supports spread spectrum clocking, and offers robust system design options including various package types and thermal interface solutions.
NXP MC7447ATHX1000NB PowerPC Microprocessor Specifications:
- Core technology: 0.13-m CMOS, nine-layer metal
- Die size: 8.51 mm x 9.86 mm
- Transistor count: 48.6 million
- Package options: 360 ceramic ball grid array (HCTE), RoHS-compliant variants
- Core voltage: 1.3 V ±50 mV DC (nominal), derated to 1.2 V ±50 mV
- I/O voltage: 1.8 V ±5% DC or 2.5 V ±5% DC
- Clock frequency: Up to 1420 MHz with dynamic frequency switching
- L2 cache: 512 KB, 8-way set associative, fully pipelined, with 64-byte line size
- Instruction cache: 32 KB, 8-way, with support for four instructions per cycle
- Data cache: 32 KB, 8-way, with support for four words per cycle
- Support for IEEE 754 single and double precision floating point operations
- Vector units: Four vector units with 32-entry register file, supporting AltiVec
- Thermal features: On-chip temperature diode, support for thermal management, spread spectrum clocking
- Supply voltages: Vpp – core, OVpp – I/O, with flexible configuration
- Package thermal resistance: Junction-to-ambient ~19–26°C/W depending on configuration
Buy the Buy Freescale MC7447A Part Number MC7447ATHX1000NB Online
Purchase the Freescale MC7447A PowerPC microprocessor MC7447ATHX1000NB online today. This advanced 0.13-m CMOS processor features a 512KB L2 cache, four vector units, and robust thermal management including a temperature diode and dynamic frequency switching. Designed for demanding networking and computing applications, it supports high throughput, multiple execution units, spread spectrum clocking, and includes multiple package options. Secure your system's performance and reliability by ordering this high-performance, fully-featured microprocessor now for seamless integration into your projects.
Order your Freescale MC7447A MC7447ATHX1000NB today and give your networking and computing projects the dependable, high-performance power they deserve.
Frequently Asked Questions
Where can I buy NXP MC7447ATHX1000NB?
You can click on the BUY or RFQ button to purchase MC7447ATHX1000NB from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MC7447ATHX1000NB?
You can download the MC7447ATHX1000NB datasheet or visit the NXP website for support.
Who is the manufacturer of MC7447ATHX1000NB?
NXP
