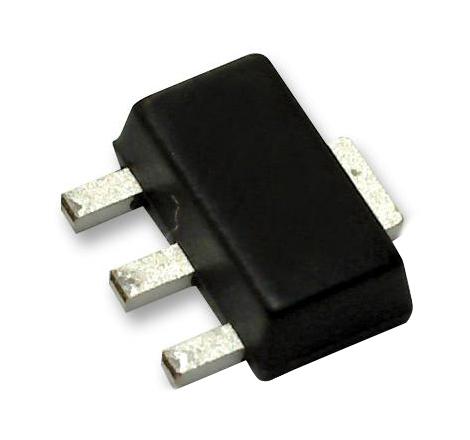

NXP MMG20241HT1 RF Driver Amplifier
The MMG20241H is a high gain, 50 Ohm RF driver and pre-driver amplifier designed for Doherty power amplifiers in wireless infrastructure systems operating between 450 and 3800 MHz. It features a P1dB of 24 dBm, a gain of 17.8 dB at 2655 MHz, and operates on a 5V single supply with a current of 78 mA. Its compact SOT-89 package simplifies integration with minimal external matching. Suitable for various general-purpose RF amplification applications, it offers reliable performance across a broad frequency range, making it ideal for modern wireless communication systems.
NXP MMG20241HT1 RF Driver Amplifier Specifications:
- Frequency Range: 450 – 3800 MHz
- P1dB: 24 dBm @ 2655 MHz
- Gain: 17.8 dB @ 2655 MHz
- Supply Voltage: 5 V
- Supply Current: 78 mA
- Package: SOT-89
- Input/Output Impedance: 50 Ohm
- Maximum RF Input Power: 23 dBm
- Junction Temperature: 175°C
- Thermal Resistance, Junction to Case: 57 °C/W
Buy the Freescale MMG20241H – Reliable RF Driver for Industrial Applications
Enhance your wireless infrastructure with the MMG20241H RF driver amplifier. Designed for broad frequency coverage from 450 to 3800 MHz, it offers 24 dBm P1dB, 17.8 dB gain, and operates reliably at 5V. Its compact SOT-89 package provides ease of integration with minimal external matching. Suitable for various RF applications, this amplifier ensures robust performance, power efficiency, and dependable operation, making it an essential component for advanced telecommunications and industrial RF systems. Purchase online now for quick distribution and top-tier performance.
Buy Freescale MMG20241H now and experience unmatched reliability and high-performance RF amplification for your wireless systems.
Frequently Asked Questions
Where can I buy NXP MMG20241HT1?
You can click on the BUY or RFQ button to purchase MMG20241HT1 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MMG20241HT1?
You can download the MMG20241HT1 datasheet or visit the NXP website for support.
Who is the manufacturer of MMG20241HT1?
NXP
