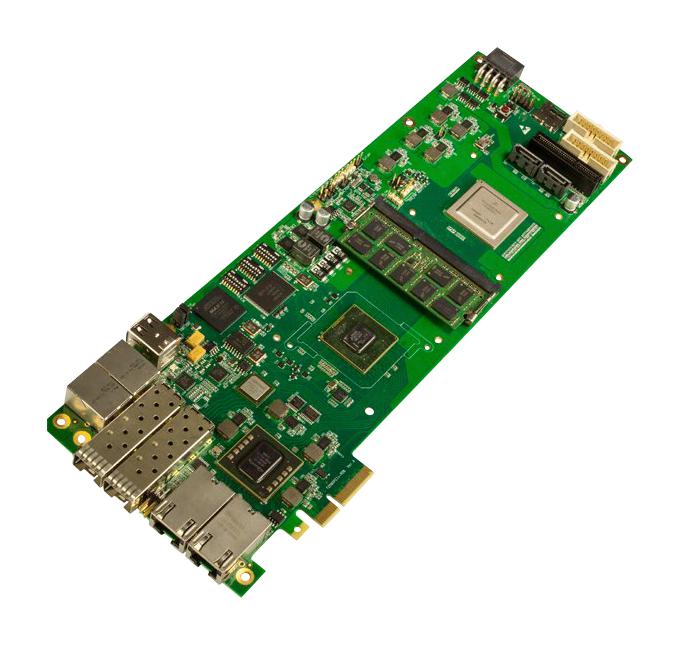

NXP T2080RDBPC Network Evaluation Platform
The T2080RDB reference design board offers a high-performance evaluation platform featuring the QorlQ T2080 communications processor, ideal for networking, Ethernet-centric applications, and security. This agile development tool supports software development, hardware testing, and performance evaluation with its PCIe, DDR3, Ethernet, and USB capabilities, housed in a 1U chassis. It is preloaded with Embedded Linux®, Data Path Acceleration Architecture software, and supports development for intelligent NICs, storage adapters, and other enterprise or industrial applications, facilitating quick market entry.
NXP T2080RDBPC Network Evaluation Platform Specifications:
- Processor: QorlQ T2080 communications processor with 64-bit e6500 core, 1200-1800 MHz
- Memory: 4 GB unbuffered DDR3 SDRAM SODIMM, 1600 MHz; 128 MB NOR flash; 1 GB NAND flash
- Storage Interfaces: SD connector, SATA interface
- PCI Express: One x4 PCIe slot, one x4 PCIe gold-finger, C293 crypto coprocessor as PCIe endpoint
- Ethernet: Dual 10 Gb/s XFI, dual 10 Gb/s Base-T PHY, two RGMII PHYs
- USB: Dual USB 2.0 ports with PHY
- Connectivity: Multiple SysClk inputs, JTAG/COP for debugging, real-time clock
- Additional Features: Supports ECC DDR3, high-speed SerDes lanes, dual UART ports, and various other I/O options
- Form Factor: 1U chassis with PCle form factor logic board, designed for hardware evaluation and development
Buy the Freescale Series T2080 Ethernet Processing: T2080RDB
Buy your Freescale Series T2080RDB today to leverage high-speed Ethernet, flexible PCIe options, embedded Linux support, and advanced processing capabilities. This robust development board is ideal for networking equipment, control systems, and industrial automation. Its compact 1U chassis, combined with PCIe, DDR3 memory, and multiple I/O interfaces, enables rapid hardware and software deployment, helping you reduce time-to-market. Whether for testing, prototyping, or performance evaluation, the T2080RDB provides the reliability and scalability required for demanding enterprise and industrial applications. Invest now and empower your projects with cutting-edge technology.
Order your Freescale Series T2080RDB high-performance evaluation board today and accelerate your networking and industrial application development.
Frequently Asked Questions
Where can I buy NXP T2080RDBPC?
You can click on the BUY or RFQ button to purchase T2080RDBPC from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part T2080RDBPC?
You can download the T2080RDBPC datasheet or visit the NXP website for support.
Who is the manufacturer of T2080RDBPC?
NXP
