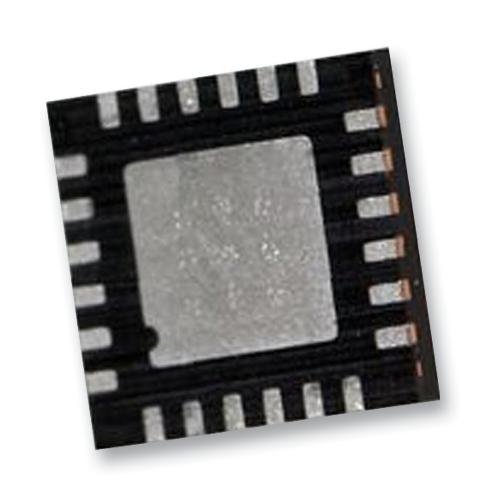

NXP PTN36241BBS115 USB 3.0 Redriver
The PTN36241B is a versatile SuperSpeed USB 3.0 redriver designed for signal integrity enhancement across a wide range of systems, including notebooks, desktops, docking stations, and peripherals. It performs high-fidelity differential signal conditioning, including receive equalization, transmit de-emphasis, and output swing adjustment, tailored via configurable pins or I2C-bus interface. With support for low power modes, automatic detection, and compliance testing, it ensures reliable, high-speed USB 3.0 operation with excellent jitter and loss performance, housed in a compact HVQFN24 package suitable for demanding application environments.
NXP PTN36241BBS115 USB 3.0 Redriver Specifications:
- Supports SuperSpeed USB 3.0 at 5 Gbit/s per channel
- Dual-channel differential data signaling
- Supports receive equalization, transmit de-emphasis, and output swing adjustments
- Configurable via 5-level pins or I2C interface
- Power consumption: Typical 330 mW at 3.3 V, U2/U3 states 53 mW
- Supports low power modes (U2/U3), with automatic detection
- Supports compliance testing without external pins
- Package: HVQFN24 (4 mm x 4 mm), 0.5 mm pitch, exposed center pad for grounding
- ESD: 5 kV HBM, 1250 V CDM
- Operating temperature: 0°C to 85°C
- Input threshold sensitivity: 75-175 mV peak-to-peak
- Impedance matching: 20-120 Ω differential, 25 kΩ input impedance
- Jitter: Peak-to-peak 0.19 UI, deterministic 0.11 UI, random 0.08 UI
- Reconfiguration time: 100 μs for internal register updates
- Shutdown and active modes controlled via CEN pin
- Supports hot-plug and flow-through PCB layout
Buy the NXP Series SuperSpeed USB 3.0 Redriver: PTN36241B
Enhance your high-speed USB 3.0 system with the PTN36241B super-speed redriver. Featuring advanced equalization, de-emphasis, and power management, this compact IC ensures stable, reliable data transfer across various applications like notebooks, docking stations, and peripherals. Easy to configure via pins or I2C, it supports compliance testing and low power modes for efficient operation. Perfect for demanding environments, it provides excellent jitter performance and impedance matching, making it the ideal choice for high-performance signal conditioning in compact form factors.
Buy NXP PTN36241B now and experience unmatched reliability and performance in high-speed USB 3.0 signal conditioning.
Frequently Asked Questions
Where can I buy NXP PTN36241BBS115?
You can click on the BUY or RFQ button to purchase PTN36241BBS115 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part PTN36241BBS115?
You can download the PTN36241BBS115 datasheet or visit the NXP website for support.
Who is the manufacturer of PTN36241BBS115?
NXP
