NXP MMZ09332BT1 Wideband RF Amplifier
The MMZ09332BT1 is a high-performance broadband amplifier operating from 130 to 1000 MHz, featuring high linearity, cost-effective 12-pin QFN packaging, and excellent stability and reliability. Designed for wireless applications including LTE, W-CDMA, and smart grid, it provides up to 33 dBm P1dB output power, with ACPR of -50 dBc at 23 dBm. Its active bias control, low supply voltage of 3-5 V, and minimal external matching make it suitable for compact, energy-efficient wireless devices. Reliable and rugged, it ensures long-term stability in demanding environments, making it ideal for RF power amplification.
NXP MMZ09332BT1 Wideband RF Amplifier Specifications:
- Frequency Range: 130-1000 MHz
- P1dB: 33 dBm
- OIP3: 48 dBm at 900 MHz
- ACP R: -50 dBc at 23 dBm output power
- Output Power: up to 33 dBm
- Power Supply: 3 to 5 V
- Supply Current: 88-128 mA
- Input/Output Return Loss: -2 dB
- Gain: 28.7 to 30.5 dB
- Thermal Resistance, Junction to Case: Stage 1 51°C/W, Stage 2 26°C/W
- Junction Temperature: 175°C
- Storage Temperature Range: -65°C to +150°C

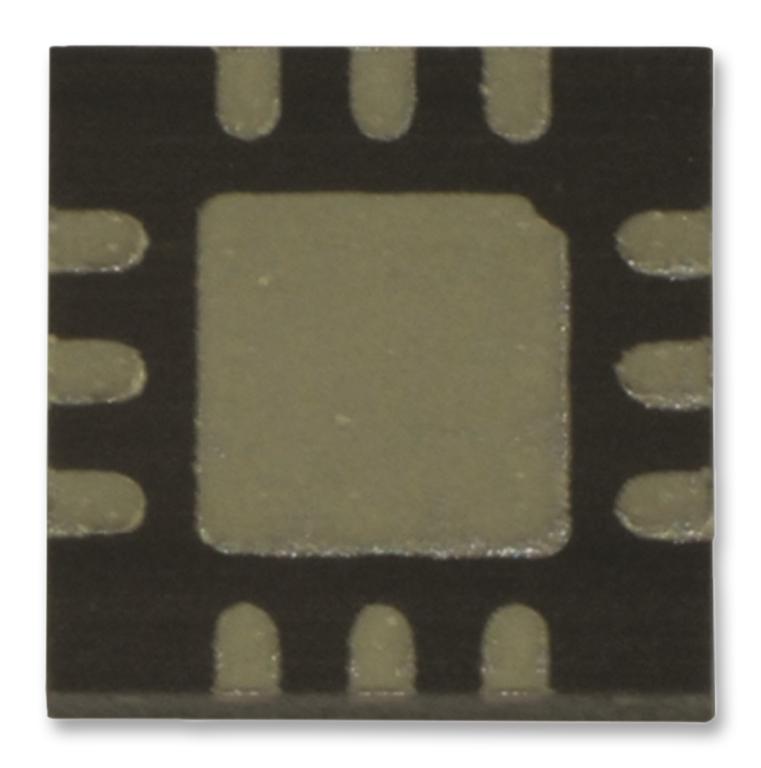

- Package: 12-pin QFN 3x3 mm, with exposed pad
- ESD Protection: Class 1C Human Body Model, Class A Machine Model
- Application: Wireless broadband, LTE, W-CDMA, smart grid
- Operating Voltage: 3-5 V
- Total Supply Current: 88-128 mA
Buy the Buy Freescale MMZ09332BT1 High Linearity RF Amplifier Online
Order the Freescale MMZ09332BT1 amplifier online today to enhance your wireless system’s linearity and coverage. With up to 33 dBm output power, excellent ACPR, and a compact QFN package, it’s ideal for LTE, W-CDMA, and smart grid applications. Its reliable active bias control and low power consumption ensure stable operation in demanding environments. Fast shipping and secure checkout make it easy to integrate this high-performance RF amplifier into your designs for superior connectivity and RF performance.
Buy Freescale MMZ09332BT1 now and experience unmatched reliability and performance for broadband wireless applications.
Frequently Asked Questions
Where can I buy NXP MMZ09332BT1?
You can click on the BUY or RFQ button to purchase MMZ09332BT1 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MMZ09332BT1?
You can download the MMZ09332BT1 datasheet or visit the NXP website for support.
Who is the manufacturer of MMZ09332BT1?
NXP
