NXP NTS0102DPQ100H Voltage Level Translator
The NTS0102-Q100 is a 2-bit dual supply translating transceiver with auto direction sensing, suitable for bidirectional voltage level translation in automotive and digital systems. It supports voltages from 1.65 V to 3.6 V on the low-voltage side and 2.3 V to 5.5 V on the high-voltage side, enabling compatibility among systems operating at different levels such as 1.8 V, 2.5 V, 3.3 V, and 5.0 V. Features include open-drain outputs, partial power-down circuitry for safe switching, high-speed data rates up to 50 Mbps, ESD protection, and automotive qualification according to AEC-Q100. Its compact packages include TSSOP8 and XSON8. Designed for applications like I2C, UART, GPIO, and level-shifting interfaces, it ensures reliable data transmission in automotive and communication systems.
NXP NTS0102DPQ100H Voltage Level Translator Specifications:
- Supply Voltage A: 1.65 V to 3.6 V
- Supply Voltage B: 2.3 V to 5.5 V
- Data rate: Up to 50 Mbps
- Open-drain outputs with partial power-down circuitry
- Maximum input voltage: 5.5 V
- ESD protection: >2500 V (MIL-STD-883, method 3015) for A port, >8000 V for B port
- Temperature range: -40°C to +125°C
- Package options: TSSOP8, XSON8
- Power dissipation: Max 250 mW at Tamb = -40°C to +125°C
- Pin configuration: 8-pin packages with GND, supply voltages, data inputs/outputs, OE control
- Applications include I2C/SMBus, UART, GPIO level shifting, automotive electronics, and digital systems

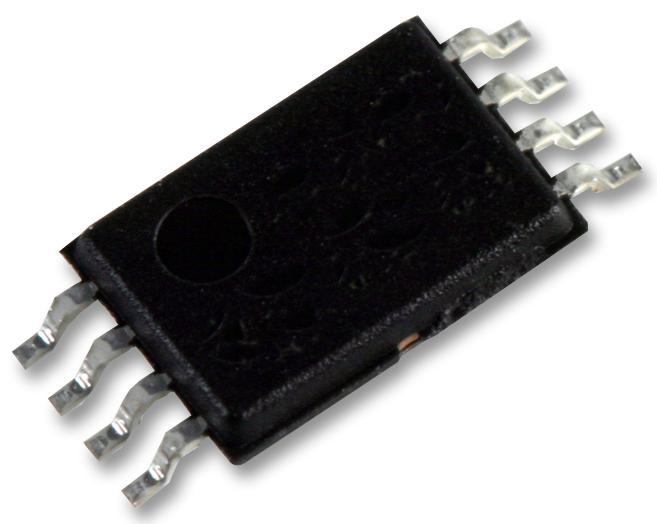

Buy the NXP Series NTSO102-Q100 Voltage Level Translator: NTS0102DPQ100
Get the NXP Series NTSO102-Q100 voltage level translator now available online. Designed for automotive and communication systems, this device offers bidirectional translation with auto direction sensing, supporting wide voltage ranges from 1.65 V to 3.6 V and 2.3 V to 5.5 V. Its high-speed data rates up to 50 Mbps, ESD protection exceeding 2500 V, and AEC-Q100 qualification ensure reliable performance in demanding environments. Compact packages and partial power-down circuitry make it ideal for I2C, UART, GPIO applications, and system interconnects requiring safe, efficient voltage translation.
Order your NXP Series NTSO102-Q100 voltage level translator today and enhance your project's reliability with automotive-grade quality and robust performance.
