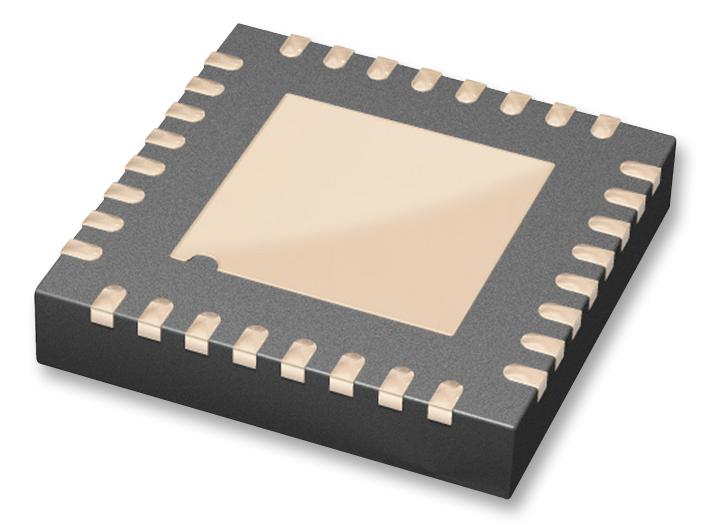

NXP LPC11U14FHN33201 32-bit ARM Cortex-M0 Microcontroller
The LPC11U14FHN33/201 is a high-performance 32-bit ARM Cortex-M0 microcontroller featuring up to 32 kB flash memory, 6 kB SRAM, full-speed USB 2.0 device controller, multiple UARTs, SSP, I2C, ADC, and extensive GPIO options. Designed for low-cost, connectivity-rich applications such as consumer devices, industrial control, and USB peripherals, it offers flexible clocking, power management modes including deep power-down, and integrated debugging support. The device’s compact HVQFN33, LQFP48, and TFBGA48 packages facilitate versatile implementation in space-constrained designs, ensuring reliable operation in demanding environments.
NXP LPC11U14FHN33201 32-bit ARM Cortex-M0 Microcontroller Specifications:
- Processor: ARM Cortex-M0, up to 50 MHz
- Flash Memory: Up to 32 kB
- SRAM: 6 kB
- Power: Single 3.3 V supply (1.8 V to 3.6 V), power modes include Sleep, Deep-sleep, Power-down, Deep power-down
- USB: Full-speed USB 2.0 device controller, 10 endpoints, supports wake-up modes
- Communications: USART, SSP, I2C-bus, supports RS-485, smart card interface
- GPIO: Up to 40 configurable pins, with internal pull-up/pull-down, open-drain, glitch filter, interrupt capability
- Clock sources: Internal RC oscillator (12 MHz), system oscillator 1-25 MHz, PLL for system and USB clock generation
- Analog: 10-bit ADC, multiplexed among 8 pins
- Timers: Up to four general-purpose counters/timers, windowed watchdog timer
- Debug: JTAG, SWD interface with support for breakpoints and watch points
- Package options: HVQFN33, LQFP48, TFBGA48
Buy the NXP Series LPC11U14FHN33: 32-bit ARM Cortex-M0 Microcontroller
Discover the reliable LPC11U14FHN33/201, a 32-bit ARM Cortex-M0 microcontroller offering up to 32 kB flash, 6 kB SRAM, full-speed USB, multiple UARTs and GPIO, with advanced power modes including deep power-down. Its compact HVQFN33, LQFP48, and TFBGA48 packages deliver space-efficient, high-performance control for consumer, industrial, and USB applications. Featuring flexible clock options, integrated ADC, multiple timers, and robust debugging, this device ensures seamless connectivity, efficient power management, and versatile deployment in space-constrained environments—order online today for your connectivity-packed projects.
Order your NXP Series LPC11U14FHN33 today and give your projects the dependable performance and connectivity features they deserve.
Frequently Asked Questions
Where can I buy NXP LPC11U14FHN33201?
You can click on the BUY or RFQ button to purchase LPC11U14FHN33201 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part LPC11U14FHN33201?
You can download the LPC11U14FHN33201 datasheet or visit the NXP website for support.
Who is the manufacturer of LPC11U14FHN33201?
NXP
