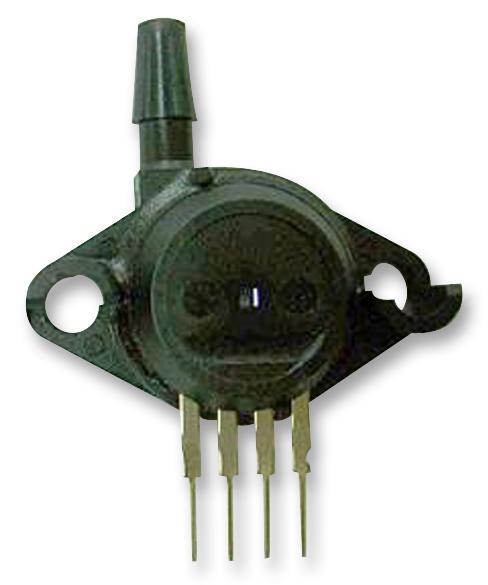

NXP MPX2200AP Pressure Sensor
The MPX2200 series pressure sensors are silicon piezoresistive devices offering high accuracy and linear voltage output proportional to applied pressure. Featuring a monolithic silicon diaphragm with integrated strain gauge and thin-film resistor network, these sensors are laser trimmed for precise span and offset calibration and temperature compensation. Designed for applications such as pump control, robotics, medical diagnostics, and altitude measurement, they operate over a differential pressure range of 0 to 200 kPa, with options for absolute, gauge, and differential pressure measurement. Suitable for harsh environments due to on-chip temperature compensation and robust package options.
NXP MPX2200AP Pressure Sensor Specifications:
- Differential Pressure Range: 0 to 200 kPa
- Supply Voltage: 10 to 16 Vdc
- Supply Current: 60 mA
- Full Scale Span: 38.5 to 40.5 mV
- Output Voltage: Proportional to pressure
- Linearity: ±0.25% (MPX2200D), ±1.0% (MPX2200A)
- Temperature Range: -40°C to +85°C
- Temperature Coefficient of Span: 1.0%Vess
- Maximum Pressure: 800 kPa
- Storage Temperature: -40°C to +125°C
- Operating Temperature: -40°C to +125°C
- Response Time: 1 ms
- Offset Stability: ±0.5%Vess over 1000 hours
- Dimensions: Case 344-15, Case 344B-01, Case 344C-01
- Output Impedance: 1400 to 3000 Ohms
- Input Impedance: 1300 to 2500 Ohms
Buy the Freescale MPX2200 – Reliable Pressure Sensors for Industrial Applications
Discover the high-accuracy pressure measurement with the Freescale MPX2200 series. Designed for industrial, medical, and automation applications, this silicon piezoresistive sensor delivers precise voltage output proportional to applied pressure, with temperature compensation integrated on-chip. Its robust package ensures durability, and its calibration features guarantee consistent performance over a wide temperature range. Perfect for pump control, robotics, barometric applications, and altitude measurement, the MPX2200 series provides a reliable solution for critical pressure sensing needs. Order online today to enhance your system’s accuracy and stability.
Buy Freescale MPX2200 pressure sensor now and experience unmatched reliability and performance in industrial, medical, and automation systems.
Frequently Asked Questions
Where can I buy NXP MPX2200AP?
You can click on the BUY or RFQ button to purchase MPX2200AP from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MPX2200AP?
You can download the MPX2200AP datasheet or visit the NXP website for support.
Who is the manufacturer of MPX2200AP?
NXP
