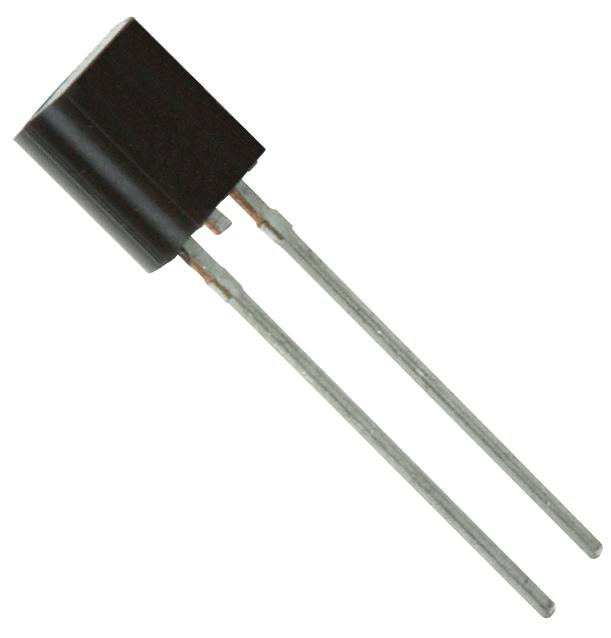

NXP KTY81220112 Silicon Temperature Sensor
Silicon temperature sensor designed for measurement and control systems. It features a positive temperature coefficient and fail-safe behavior, ensuring high accuracy, reliability, and long-term stability. The sensor exhibits virtually linear characteristics, making it suitable for precise temperature monitoring.
NXP KTY81220112 Silicon Temperature Sensor Specifications:
- Resistance at 25°C: KTY81/120 980 - 1020 Q, KTY81/121 980 - 1000 Q, KTY81/122 1000 - 1020 Q, KTY81/150 950 - 1050 Q, KTY81/210 1980 - 2020 Q, KTY81/220 1960 - 2040 Q, KTY81/221 1960 - 2000 Q, KTY81/222 2000 - 2040 Q, KTY81/250 1900 - 2100 Q
- Temperature Coefficient: -0.79 %/K
- Maximum Operating Current: 10 mA in free air at 25°C, 2 mA at 150°C
- Ambient Temperature Range: -55°C to +150°C
- Thermal Time Constant: 30 seconds in still air, 5 seconds in still liquid, 3 seconds in flowing liquid
- Resistance Ratios: Tamb = 100°C/25°C approximately 1.696, Tamb = -55°C/25°C approximately 0.490
- Size and Packaging: SOD70 encapsulated, with lead-to-lead distance of 5.08 mm in spread lead packages, body width 44-48 mm, body height 5-5.2 mm
- Pin Configuration: Two electrical contacts, pin 1 and pin 2
- Marking: Corresponds to type codes, e.g., 120 for KTY81/120
- Maximum Ambient Temperature: 150°C
Buy the NXP KTY81220112 – Accurate Silicon Temperature Sensor for Industrial Use
Purchase the NXP KTY81 series silicon temperature sensors today to ensure accurate temperature monitoring in your industrial control systems. Engineered for high reliability, long-term stability, and fail-safe operation, these sensors are ideal for measurement applications requiring linear characteristics and stability over a wide temperature range. With easy installation options, compact packaging, and proven performance, order online now to integrate reliable temperature sensing into your manufacturing or automation projects effortlessly.
Get NXP KTY81 series today—built for precise temperature measurement and robust control in industrial environments.
Frequently Asked Questions
Where can I buy NXP KTY81220112?
You can click on the BUY or RFQ button to purchase KTY81220112 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part KTY81220112?
You can download the KTY81220112 datasheet or visit the NXP website for support.
Who is the manufacturer of KTY81220112?
NXP
