NXP MPX5700D Pressure Sensor
The MPX5700 series is a high-accuracy silicon pressure sensor designed for microcontroller applications, featuring on-chip signal conditioning, temperature compensation, and calibration. It offers a pressure range of 0 to 700 kPa for gauge and differential types, and 15 to 700 kPa for absolute types. The sensor provides an analog output voltage proportional to pressure, with a typical error of ±2.5% over 0°C to 85°C. It is ideal for industrial, automotive, and HVAC systems requiring precise pressure measurement with durable construction and integrated signal processing.
NXP MPX5700D Pressure Sensor Specifications:
- Pressure Range: Gauge and Differential: 0-700 kPa, Absolute: 15-700 kPa
- Supply Voltage: 4.75-5.25 VDC
- Supply Current: 7-10 mA
- Output Voltage at Full Scale: 4.587-4.813 VDC
- Full Scale Span: ~45 V
- Accuracy: ±2.5% over 0°C to 85°C
- Sensitivity: 6.4 mV/kPa
- Response Time: 1.0 ms
- Maximum Pressure: 2800 kPa
- Storage Temperature: -40°C to +125°C
- Operating Temperature: -40°C to +125°C
- Maximum Pressure P2: 500 kPa
- Connections: 6-pin unibody package with optional lead form
- Input/Output: Analog with decoupling circuits for stable readings

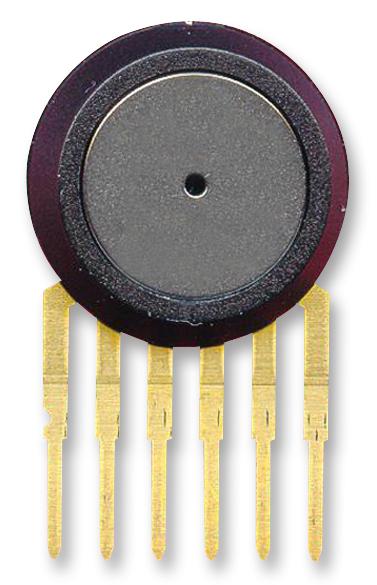

Buy the Freescale Series MPX5700 Pressure Sensor: MPX5700D
Experience reliable pressure measurement with the high-accuracy Freescale Series MPX5700 pressure sensor, featuring integrated signal conditioning and calibration for motor control, HVAC, and industrial applications. Its durable construction combined with a linear analog output ensures precise readings over a wide temperature range. Available in gauge, differential, and absolute configurations, this sensor provides an easy-to-use solution for engineers seeking consistent performance, quick response, and long-term stability in demanding environments. Purchase online today for quick deployment and superior measurement reliability.
Order your Freescale Series MPX5700 pressure sensor today and ensure high precision and durability for your industrial pressure measurement needs.
Frequently Asked Questions
Where can I buy NXP MPX5700D?
You can click on the BUY or RFQ button to purchase MPX5700D from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MPX5700D?
You can download the MPX5700D datasheet or visit the NXP website for support.
Who is the manufacturer of MPX5700D?
NXP
