NXP BFU530XRR NPN RF Transistor
The BFU530XR is a high-speed NPN silicon RF transistor designed for low noise, medium power applications up to 2 GHz. It is housed in a compact plastic SOT143R package with reverse pinning. Ideal for broadband amplifiers, low noise amplifiers, and ISM band oscillators, it features a low noise figure of 0.65 dB at 900 MHz, maximum stable gain of 21 dB at 900 MHz, and transition frequency of 11 GHz. Its robust construction includes high breakdown voltages and thermal stability, making it suitable for demanding RF communication and instrumentation systems.
NXP BFU530XRR NPN RF Transistor Specifications:
- Package: SOT143R (plastic surface-mounted, reverse pinning, 4 leads)
- Collector-Base Voltage: 24 V
- Collector-Emitter Voltage: 12 V
- Emitter-Base Voltage: 2 V
- Collector Current: 10 to 40 mA
- Maximum Power Dissipation: 450 mW at 87°C
- Gain: 60 (DC), Max stable gain 21 dB at 900 MHz
- Noise Figure: 0.65 dB at 900 MHz
- Transition Frequency: 11 GHz
- Maximum Power Gain: 21 dB at 900 MHz
- Frequency Range: up to 2 GHz
- Temperature Range: -55°C to +105°C
- Certified: AEC-Q101 qualified

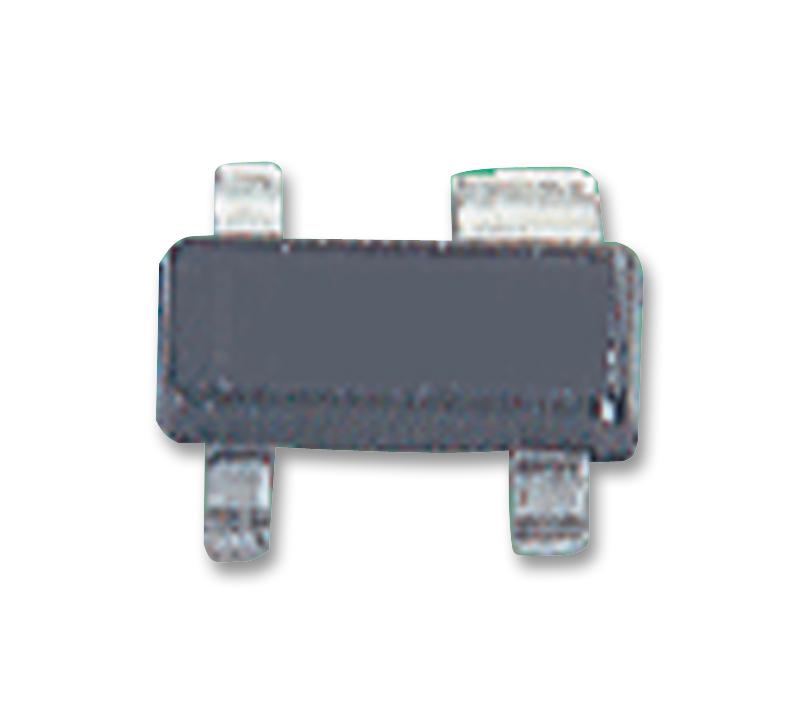

Buy the Buy NXP BFU530XR Part Number BFU530XRR Online
Upgrade your RF design with the NXP BFU530XR NPN silicon RF transistor, optimized for low noise, high gain, and high-speed applications up to 2 GHz. This compact SOT143R package ensures excellent thermal stability and robustness for broadband amplifiers, low noise amplifiers, and ISM band oscillators. Its low noise figure of 0.65 dB at 900 MHz and transition frequency of 11 GHz make it an ideal choice for demanding RF communication systems, delivering reliable performance and easy integration for advanced electronic applications.
Buy NXP BFU530XR now and experience unmatched reliability and RF performance for your high-speed low noise applications.
Frequently Asked Questions
Where can I buy NXP BFU530XRR?
You can click on the BUY or RFQ button to purchase BFU530XRR from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part BFU530XRR?
You can download the BFU530XRR datasheet or visit the NXP website for support.
Who is the manufacturer of BFU530XRR?
NXP
