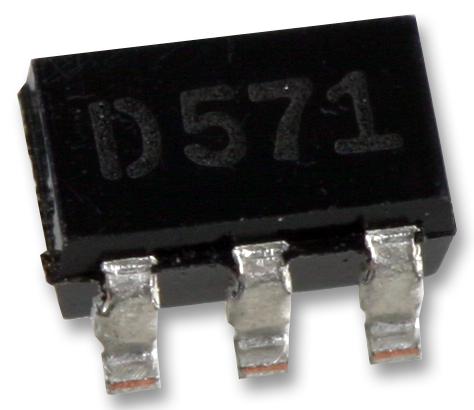

NXP BGA2874115 Wideband Amplifier
The BGA2874 is a silicon MMIC wideband amplifier designed for frequencies up to 750 MHz, featuring internal matching for 50 Ω, high gain of 31.0 dB at 750 MHz, and low noise figure of 3.1 dB at 500 MHz. It provides 5 dBm output power at 1 dB gain compression, operates with a supply voltage of 2.5 V and a current of 16.5 mA, and is unconditionally stable without requiring external inductors. Ideal for low noise IF amplification in satellite LNBs and RF communication systems.
NXP BGA2874115 Wideband Amplifier Specifications:
- Package: 6-pin SOT363 plastic SMD
- Gain: 31.0 dB at 750 MHz
- Noise figure: 3.1 dB at 500 MHz
- Output power at 1 dB gain compression: 5 dBm
- Supply Voltage: 2.5 V
- Supply Current: 16.5 mA
- Reverse Isolation: > 52 dB up to 750 MHz
- Stable (K > 1), no output inductor required
- Matching: Internally matched to 50 Ω
- Operating Frequency Range: DC to 750 MHz
- Output Power at Saturation: 5-6 dBm (250-750 MHz)
- Input/Output Return Loss: 25-29 dB
- Total Power Dissipation: 200 mW at Tsp = 90°C
- Junction Temperature Max: 125°C
- Storage Temperature Range: -40°C to +125°C
Buy the Buy NXP BGA2874 MMIC Wideband Amplifier Part Number BGA2874115 Online
Purchase the NXP BGA2874 MMIC wideband amplifier online to integrate a compact, high-performance RF component into your communication and satellite systems. This amplifier offers 31 dB gain at 750 MHz, low noise figure of 3.1 dB, and 5 dBm output power at 1 dB compression, making it ideal for low noise IF and RF amplification. Its stable design requires no external inductors, ensuring easy installation. Enhance your projects with this reliable, efficient, and easily accessible component for demanding RF applications.
Get NXP BGA2874 today—designed for high gain, low noise, and stable performance in RF and IF applications, ensuring reliable signal amplification for your system.
Frequently Asked Questions
Where can I buy NXP BGA2874115?
You can click on the BUY or RFQ button to purchase BGA2874115 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part BGA2874115?
You can download the BGA2874115 datasheet or visit the NXP website for support.
Who is the manufacturer of BGA2874115?
NXP
