NXP MPF5024AMBA0ES Power Management IC
The PF5024 is a high-performance power management IC designed for automotive, industrial, and consumer applications. It integrates four high-efficiency buck regulators, monitored by internal safety features including thermal shutdown, undervoltage, overvoltage, and fault detection. The device supports programmable sequences for startup and shutdown, spread-spectrum clock modulation for EMC robustness, and a robust watchdog system for system safety. It features integrated voltage and temperature monitoring, configurable via OTP memory, ensuring reliable operation under critical conditions. Its flexible interface allows seamless system integration with support for high-speed I2C up to 3.4 MHz, making it suitable for advanced multimedia processors and high-end systems.
NXP MPF5024AMBA0ES Power Management IC Specifications:
- Input voltage range: 0.4 V to 18 V
- Output voltage range: 0.4 V to 1.8 V, programmable in steps of 6.25 mV
- Maximum output current per regulator: 2.5 A
- Operating temperature: -40°C to 125°C
- Thermal shutdown threshold: 155°C to 175°C
- Undervoltage lockout with hysteresis: 25 V to 29 V (UVDET thresholds)
- Linear regulator reference: internal bandgap voltage
- Voltage monitoring: adjustable UV and OV thresholds with debounce timers
- Clock frequency: programmable from 16 MHz to 24 MHz with spread-spectrum support
- Clock synchronization: external clock via SYNC pin with range 333 kHz - 3 MHz
- Supports multiphase operation (single, dual, triple, quad)
- Programmable soft start and power down sequences
- Secure I2C communication with CRC and secure write options
- Package: HVQFN40 (SOT618-14), thermal resistance R_ja: 39.6°C/W

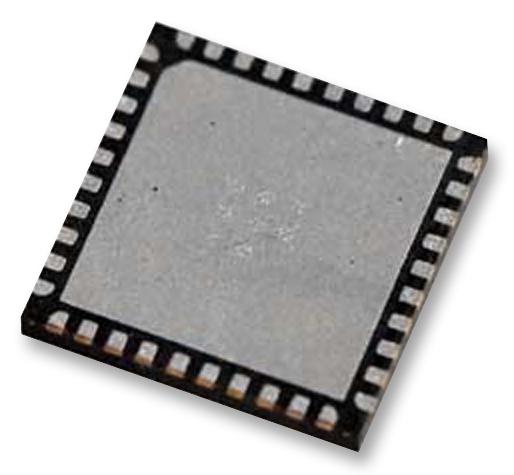

Buy the Buy NXP PF5024 Part Number MPF5024AMBA0ES Online
Discover the NXP PF5024 power management IC, featuring four high-efficiency buck regulators with safety monitoring, spread-spectrum clock, and flexible startup/shutdown sequences. Designed for high-end multimedia processors and critical systems, it provides robust fault detection, thermal shutdown, and customizable voltage and timing configurations via OTP memory. Its support for high-speed I2C up to 3.4 MHz and multiphase operation ensures seamless system integration and power optimization, making it ideal for automotive, industrial, and consumer applications requiring reliable and advanced power solutions.
Order your NXP PF5024 high-performance power management IC today and enhance your automotive, industrial, or consumer system with reliable, integrated power solutions.
Frequently Asked Questions
Where can I buy NXP MPF5024AMBA0ES?
You can click on the BUY or RFQ button to purchase MPF5024AMBA0ES from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MPF5024AMBA0ES?
You can download the MPF5024AMBA0ES datasheet or visit the NXP website for support.
Who is the manufacturer of MPF5024AMBA0ES?
NXP
